Home
>>
Cadillac Truck
>>
2008
>>
Escalade AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speed Sensor, Transfer Case
Speed Sensor, Transfer Case

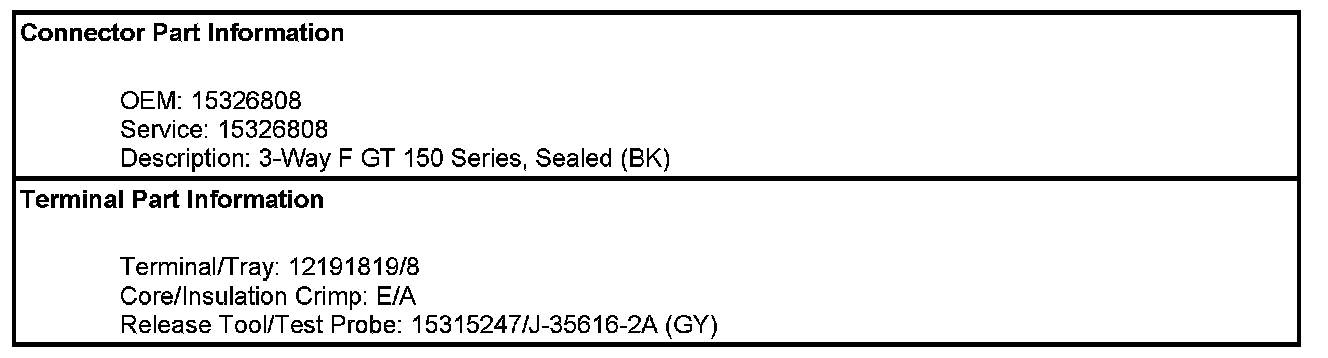

Component Connector End Views - Continued

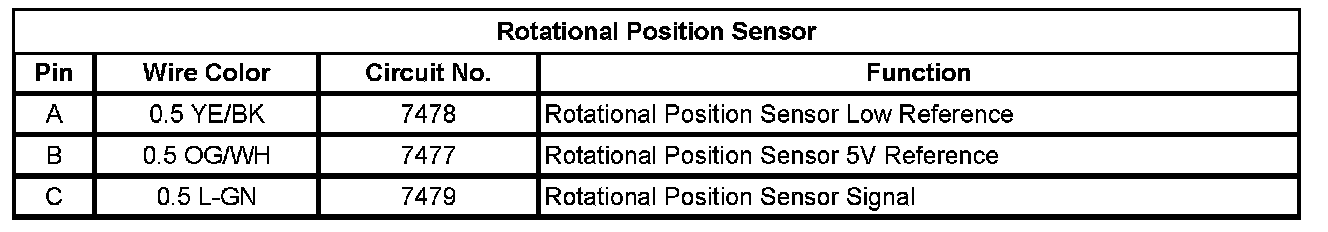

Rotational Position Sensor
