Power Seat Motor Position Sensor

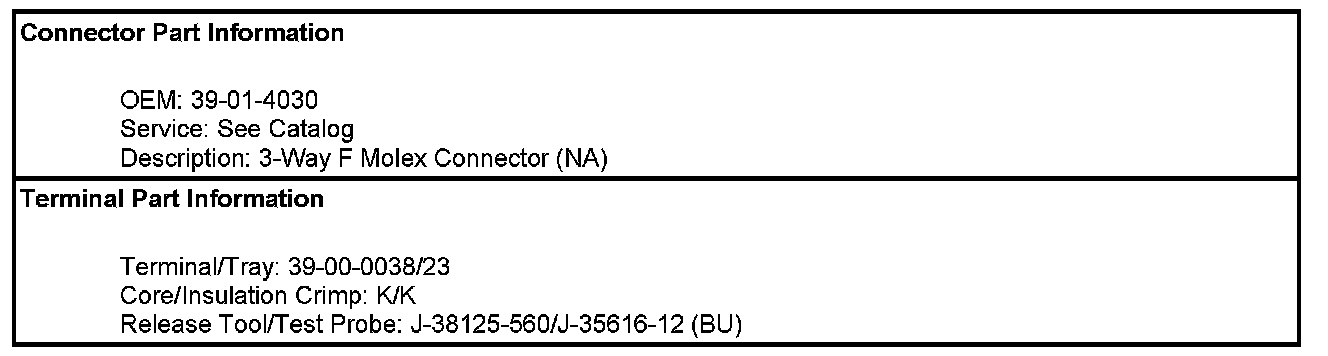

Component Connector End Views - Continued

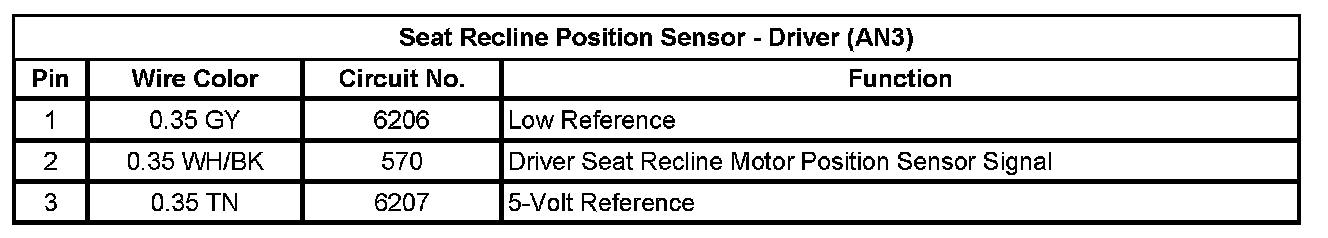

Seat Recline Position Sensor - Driver (AN3)
