124. Ignition Module Installation - Left Side

Ignition Module Installation - Left

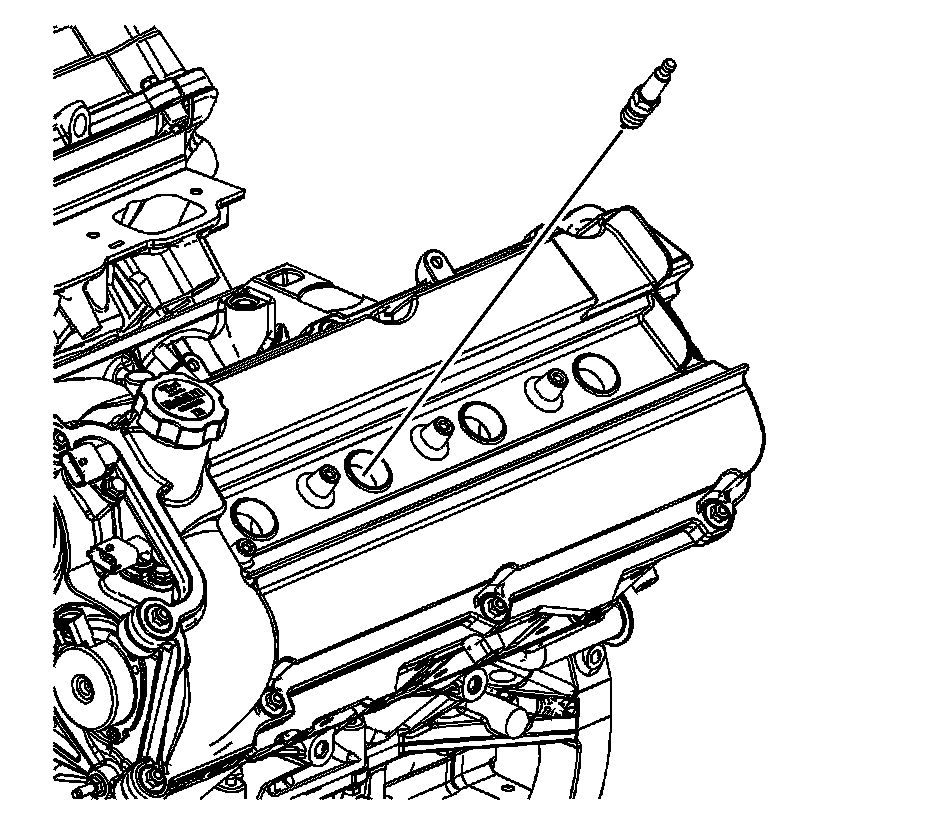

1. Install the left spark plugs.
Tighten the spark plugs to 15 Nm (11 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.






2. Apply a small amount of dielectric grease GM P/N 12345579, (Canadian P/N 1974984), to each spark plug boot (1) of the ignition coil assembly.

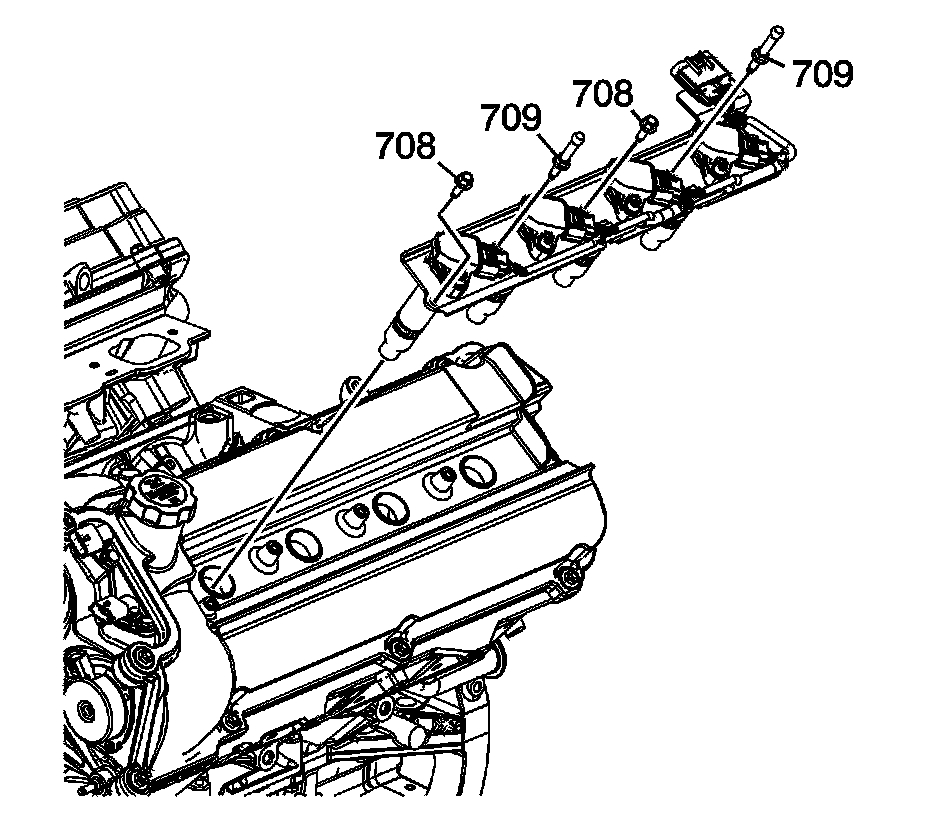

3. Carefully, install the left ignition coil assembly.

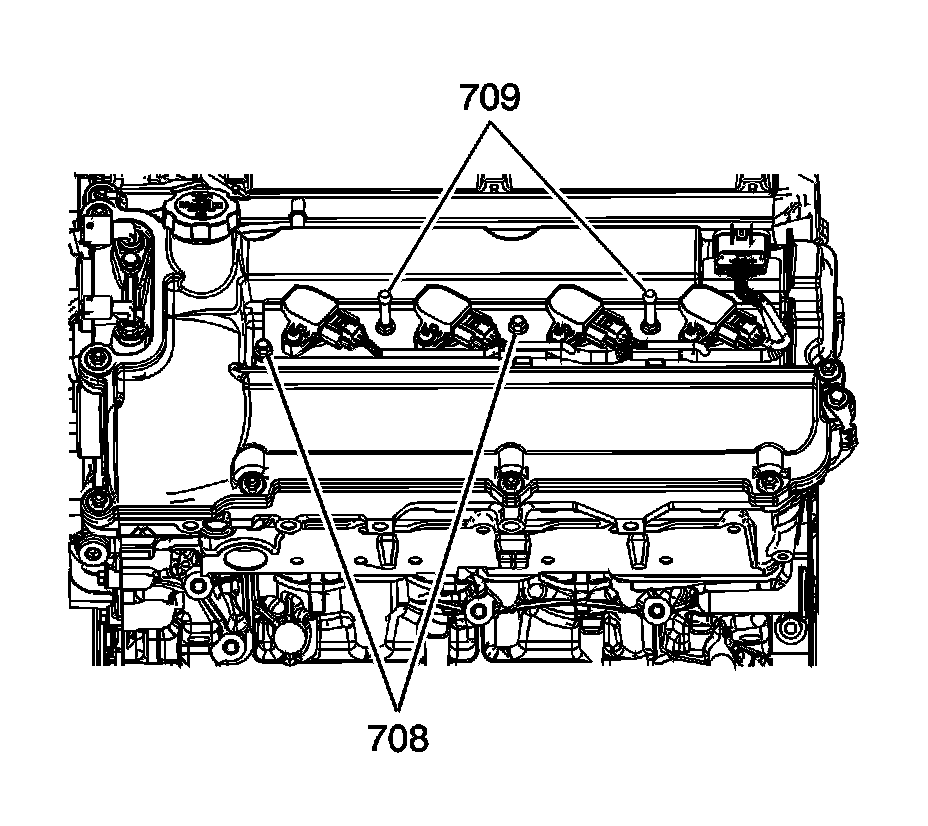

4. Install the left ignition coil assembly bolts (708) and studs (709).
Tighten the left ignition coil assembly bolts (708) and studs (709) to 10 Nm (89 inch lbs.).

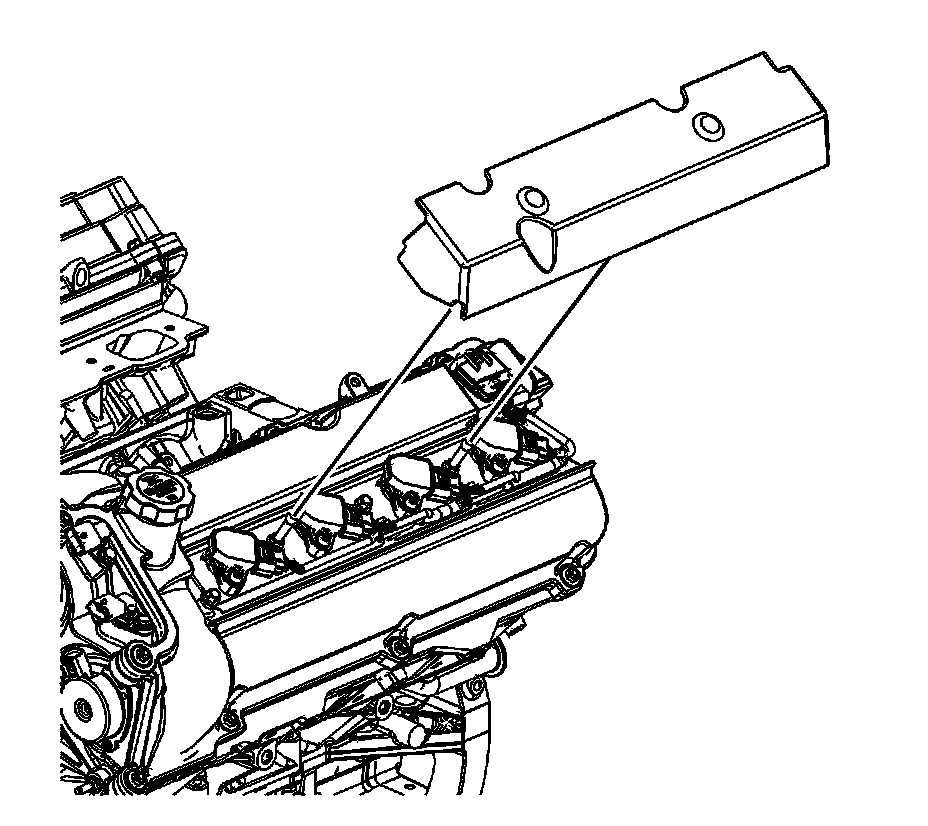

5. Install the left ignition coil assembly cover.
