Home
>>
Cadillac Truck
>>
2006
>>
SRX RWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
Courtesy Lamp
Courtesy Lamp

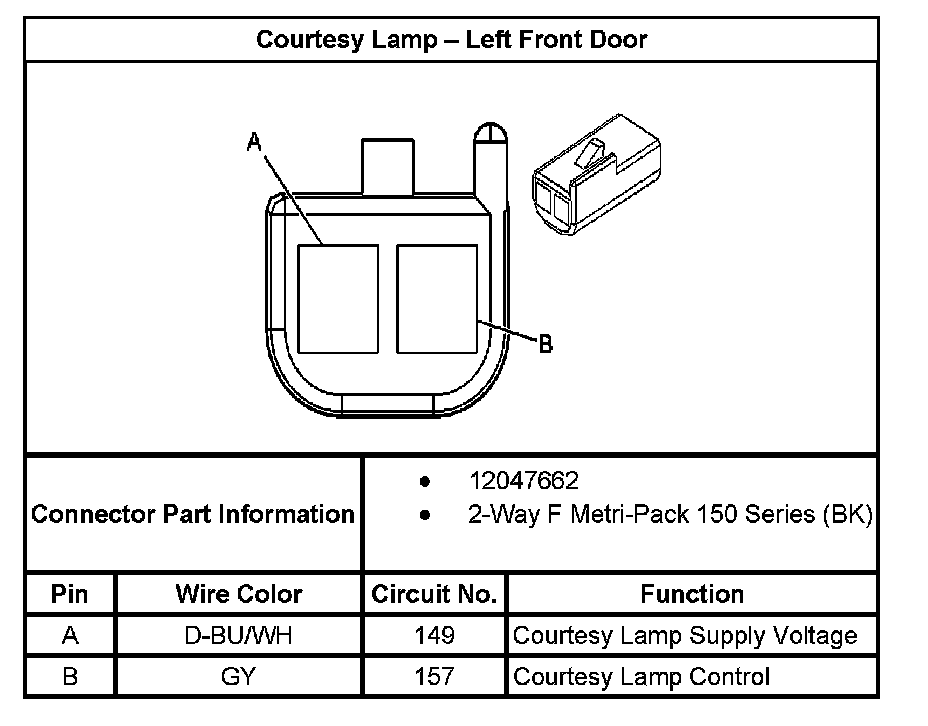

Courtesy Lamp - Left Front Door:

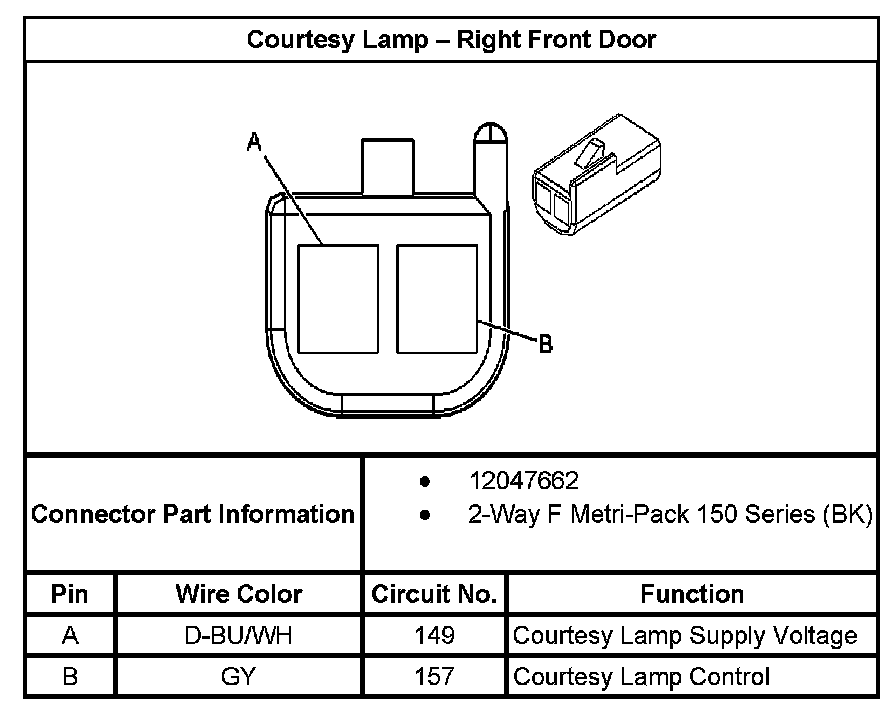

Courtesy Lamp - Right Front Door:

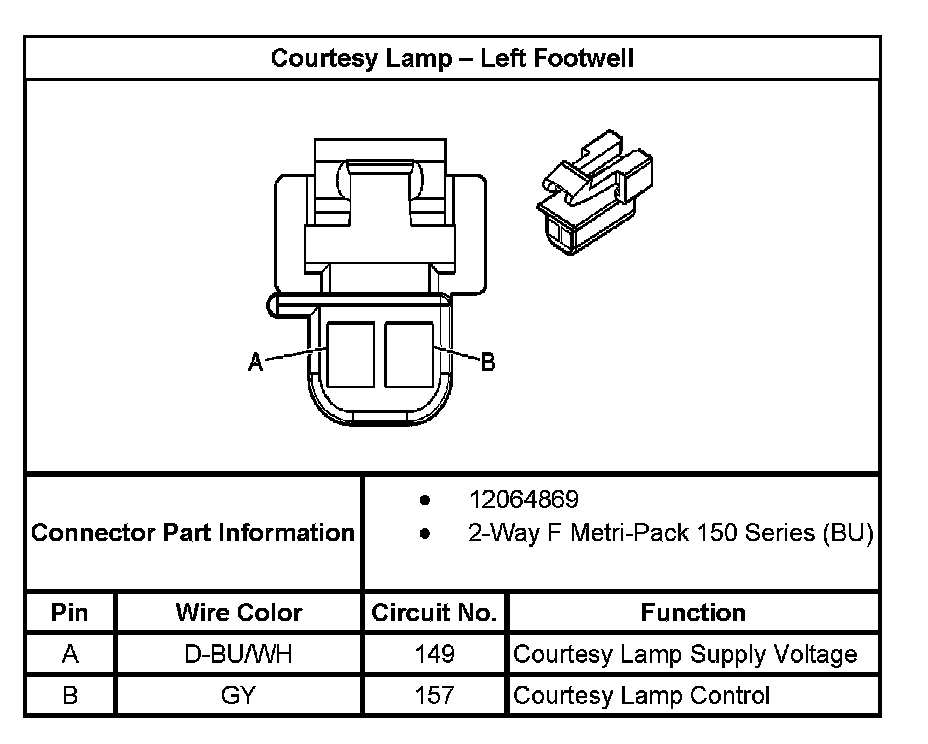

Courtesy Lamp - Left Footwell:

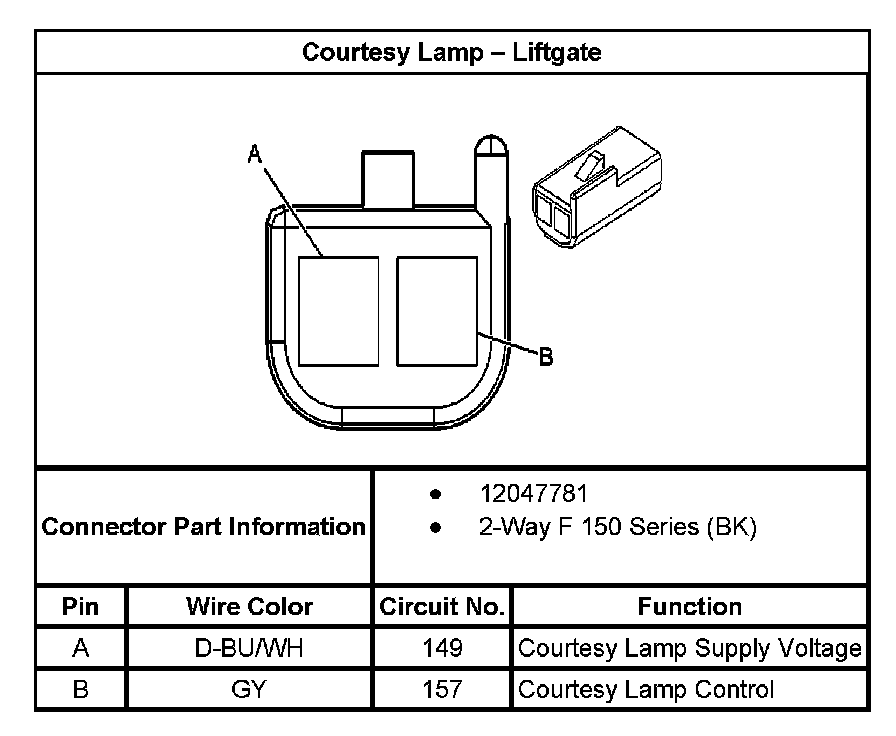

Courtesy Lamp - Liftgate:

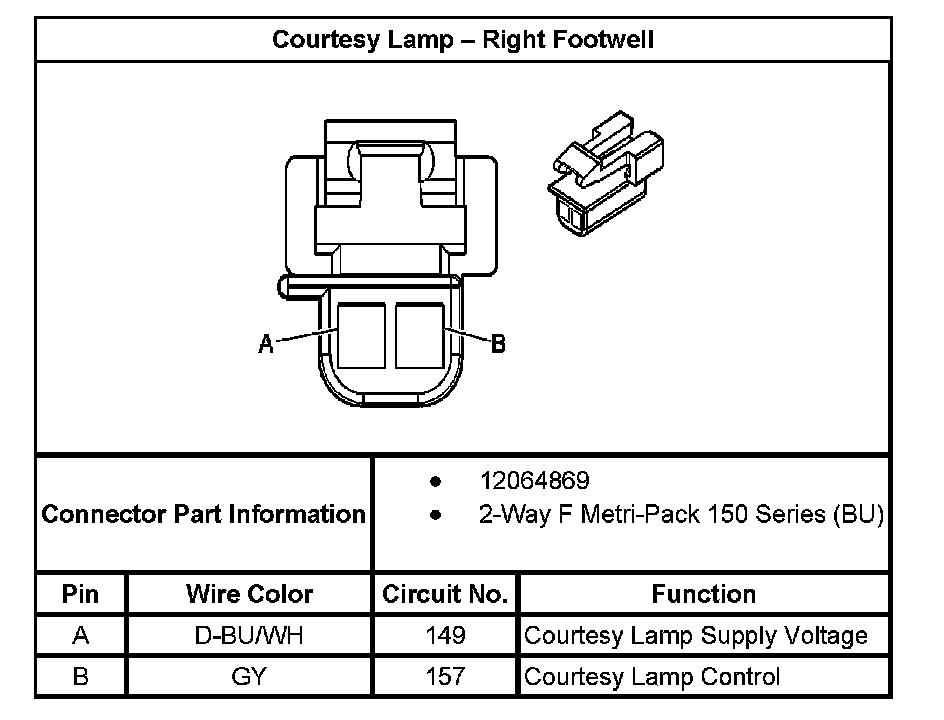

Courtesy Lamp - Right Footwell:
