Differential Housing Support Bushing Replacement

Differential Housing Support Bushing Replacement

Removal Procedure

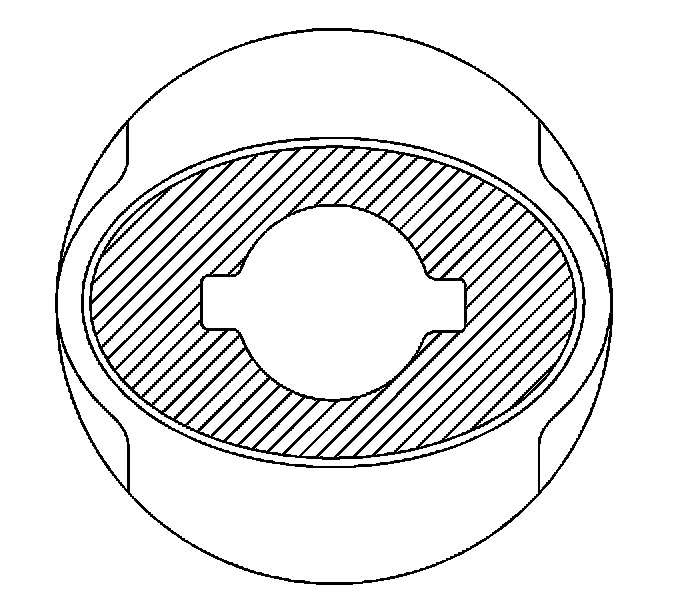

Steel Cage Bushing





1. Remove the differential assembly.
2. Remove the housing support bushing.

Installation Procedure





1. Install the housing support bushing.
2. Install the differential assembly.

^ Tools Required
- J 45007 Bushing Remover/Installer

Removal Procedure
Solid Rubber Bushing





1. Remove the differential assembly.

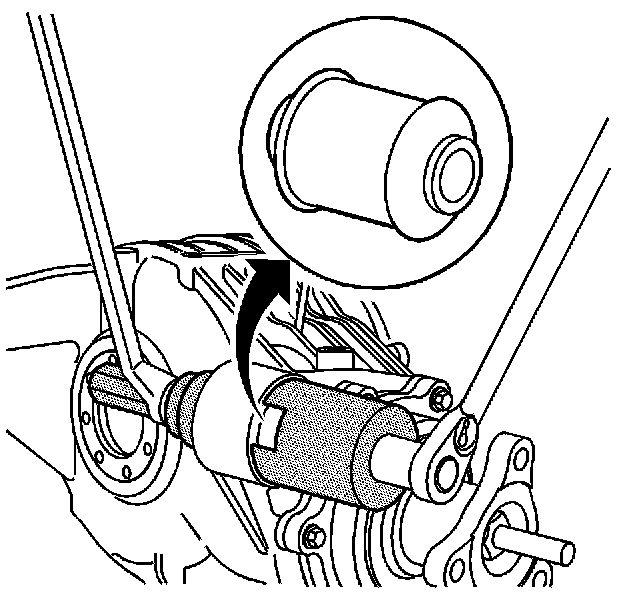

2. Using the J 45007, remove the housing support bushing.

Installation Procedure




1. Using the J 45007, install the housing support bushing.
2. Install the differential assembly.
