Transmission Fluid Cooler Line Quick Connect Fitting

Transmission Fluid Cooler Line Quick Connect Fitting

Tools Required
J 44827 Transmission Cooler Quick Disconnect

Removal Procedure

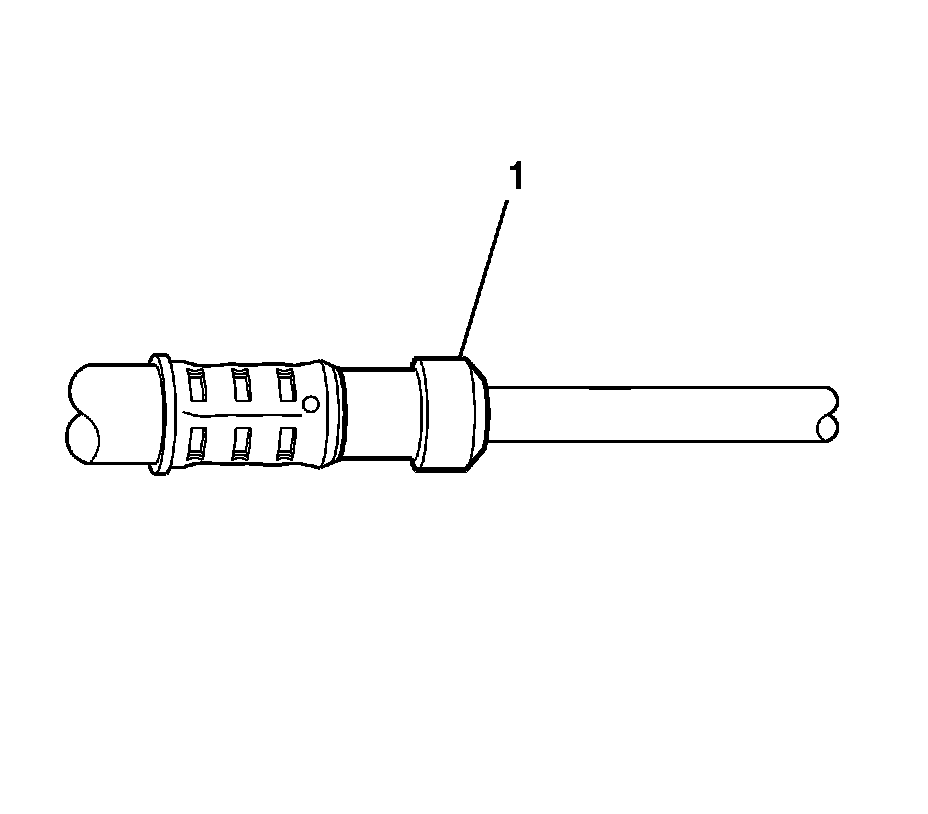

1. Locate the transmission oil cooler (TOC) quick connect fitting (1).





2. Important: Be sure that the lock tang on the release tool is properly engaged.

Install the J 44827 onto the TOC pipe.

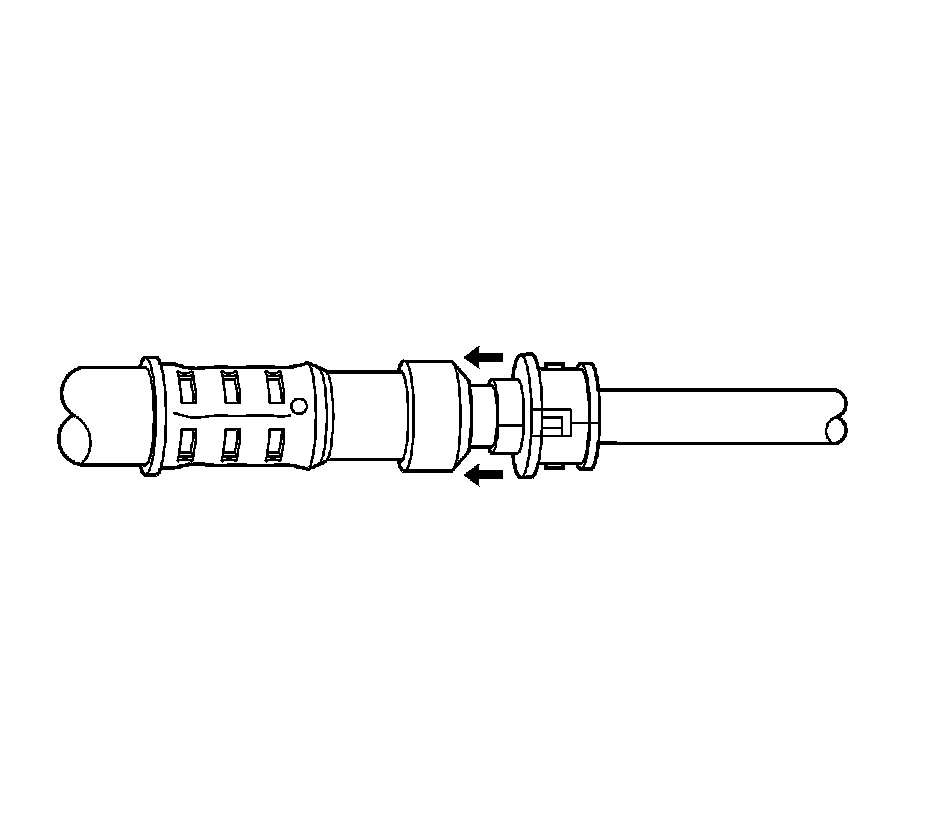

3. Slide the J 44827 toward the TOC quick connect fitting.





4. Insert the J 44827 into the TOC quick connect fitting. The distance between the quick connect fitting and J 44827 should be approximately 2.00 mm (0.080 inch).





5. Pull back on the TOC pipe to disengage the pipe from the TOC quick connect fitting.
6. Remove the J 44827 from the TOC pipe.

Installation Procedure





1. Important: Inspect the TOC quick connect fitting for signs of wear or damage. Replace the components if necessary.

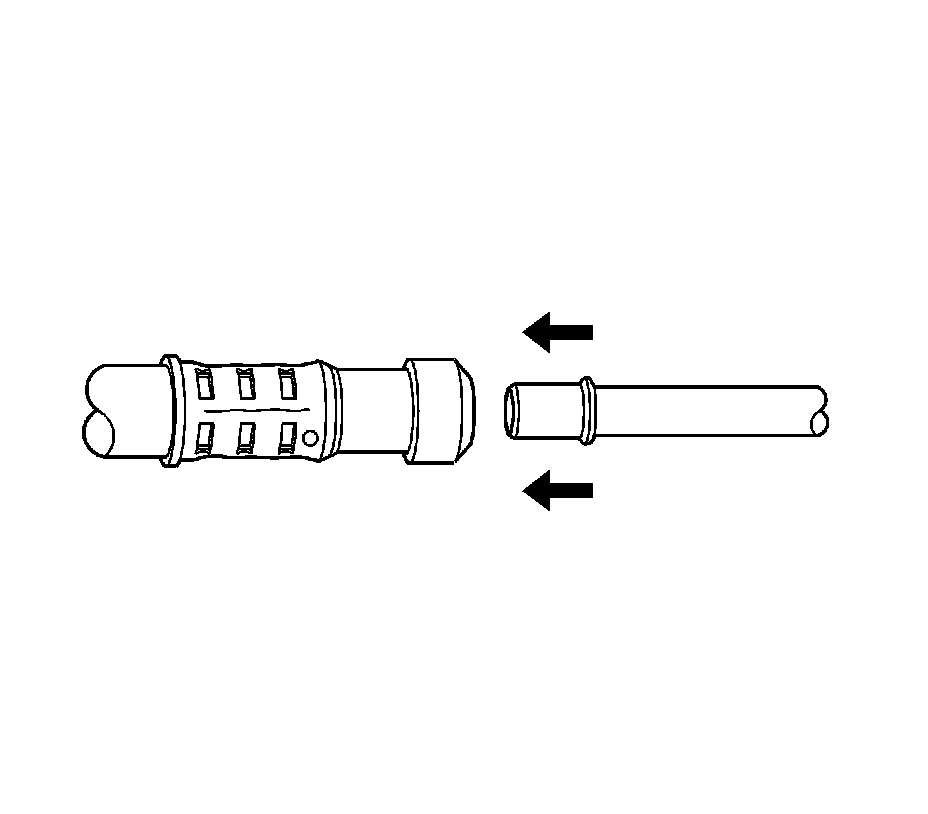

Install the TOC pipe into the TOC quick connect fitting. A distinct snap should be heard or felt when assembling the TOC pipe to the quick connect fitting.
2. To ensure the cooler line is properly installed, give the cooler pipe a gentle pull.
