Cadillac Truck
>>
2006
>>
SRX AWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Auxiliary Power Outlet
>>
Diagrams
>>
Connector Views
>>
Auxiliary Power Outlet - Front
Auxiliary Power Outlet - Front

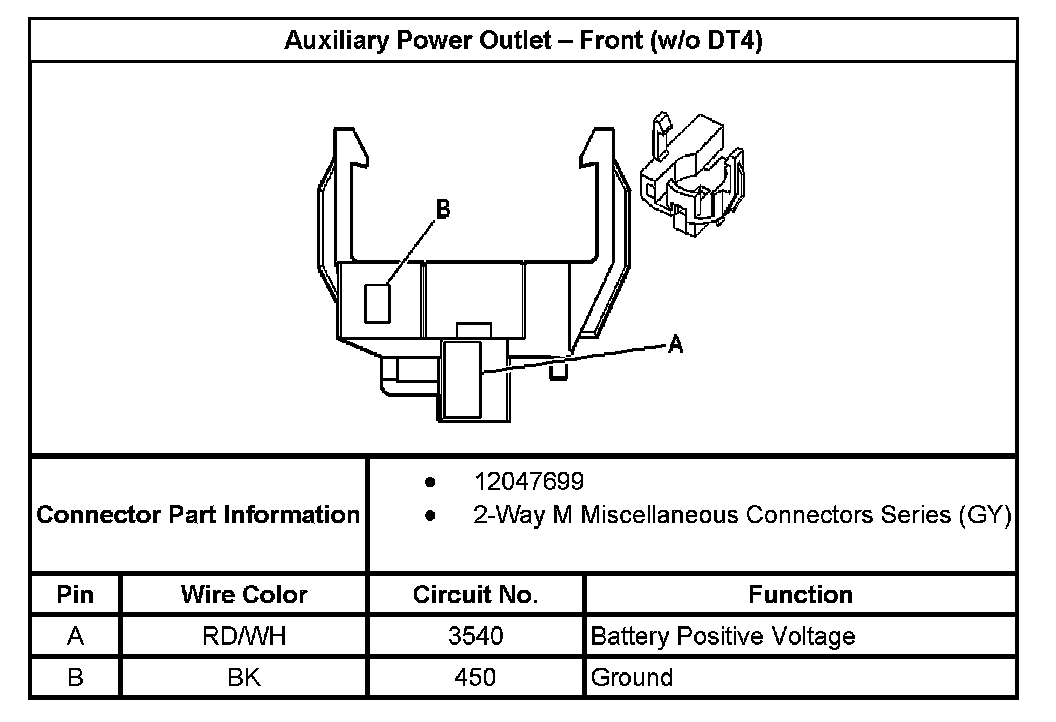

Auxiliary Power Outlet - Front (Without RPO Code DT4):
