Auxiliary Power Outlet - Center Console
Auxiliary Power Outlet - Center Console

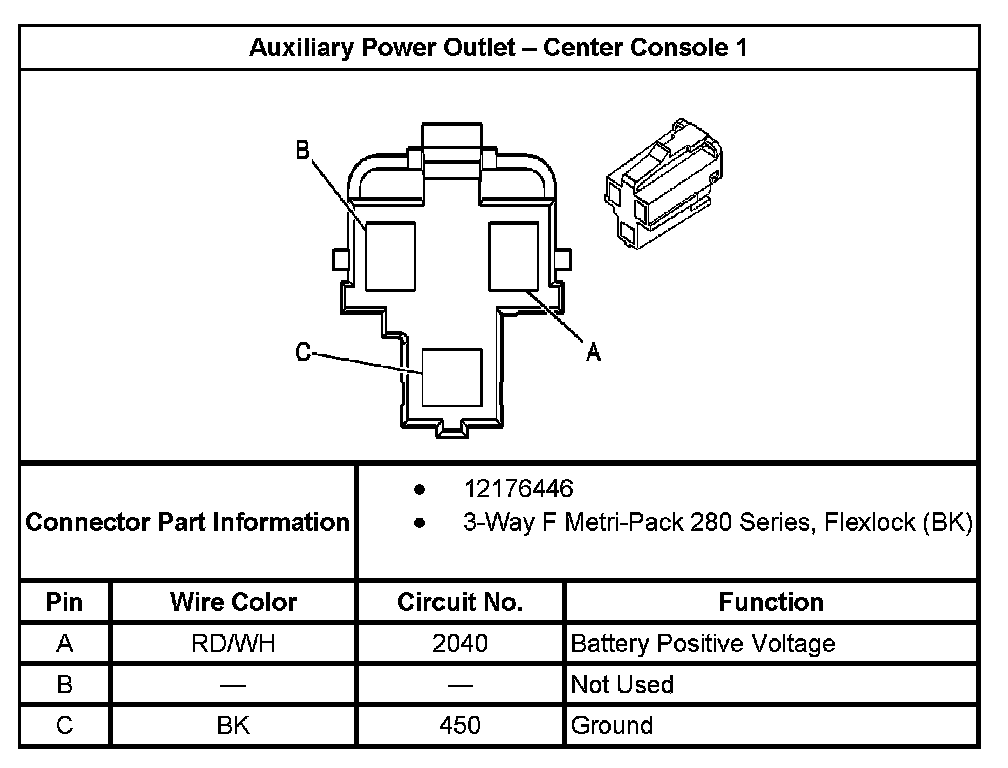

Auxiliary Power Outlet - Center Console 1:

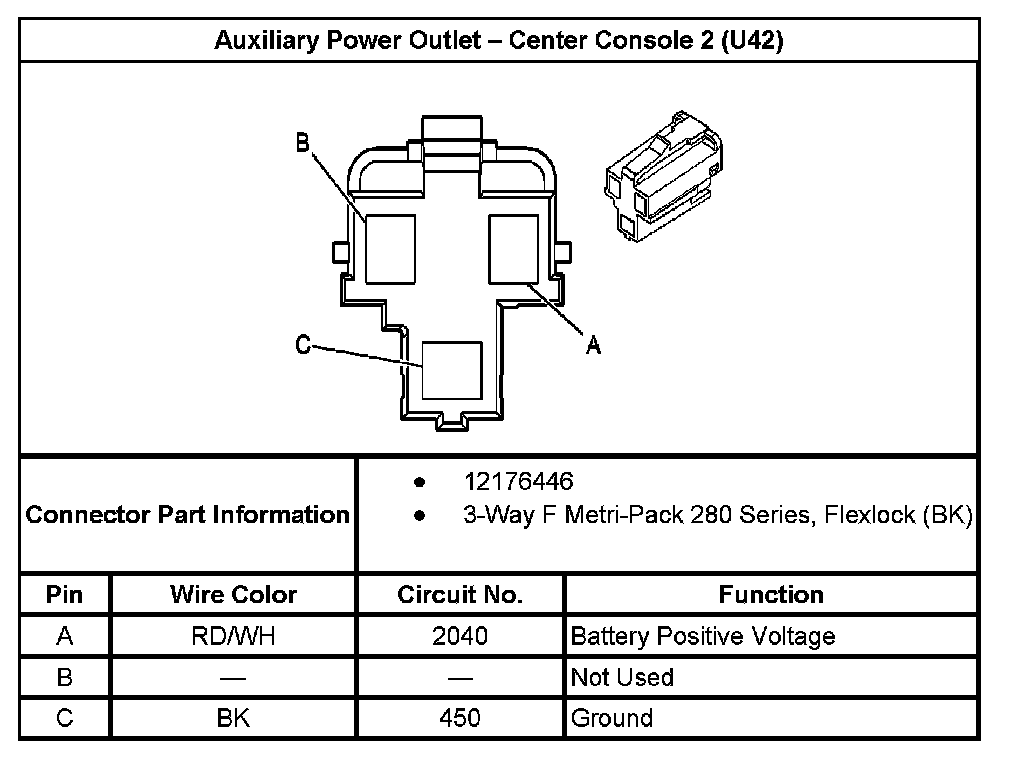

Auxiliary Power Outlet - Center Console 2 (With RPO Code U42):
