Exhaust Manifold Heat Shield Replacement - Right (LH2)

Removal Procedure

Caution:
Refer to Exhaust Service Caution in Service Precautions.

Caution:
Refer to Protective Goggles and Glove Caution in Service Precautions.





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Disconnect the wire clips from the generator and generator bracket.

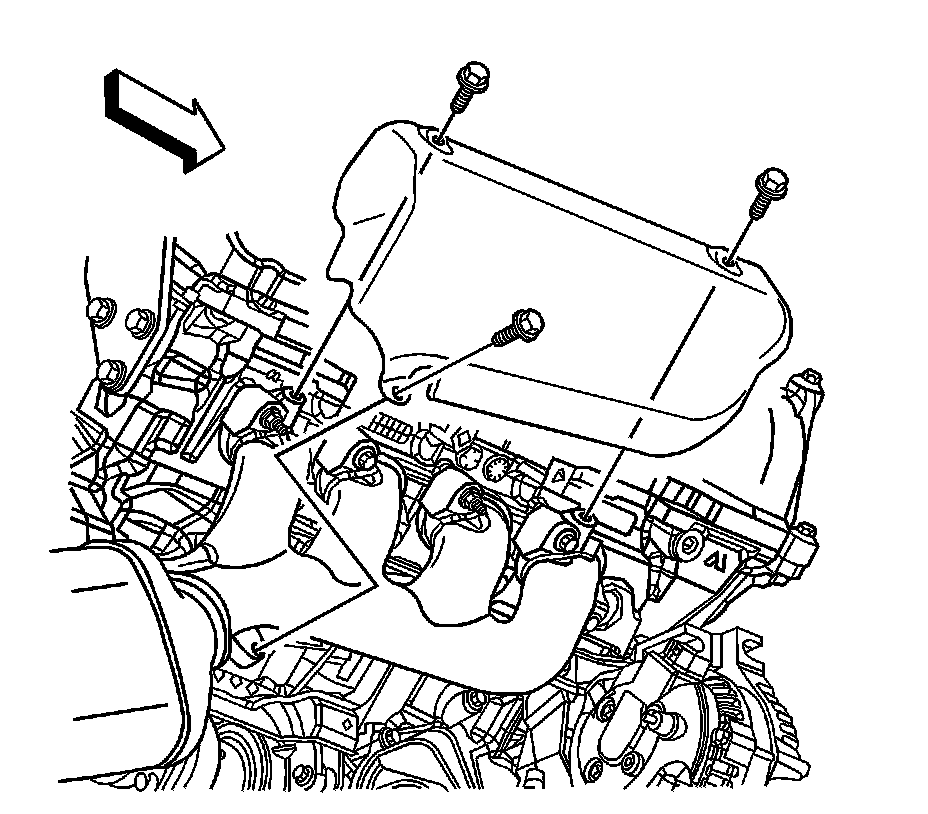

3. Remove the bolts securing the exhaust manifold heat shield to the exhaust manifold.
4. Remove the heat shield from the engine.

Installation Procedure





1. Install the exhaust manifold heat shield to the engine.

2. Notice:
Refer to Fastener Notice in Service Precautions.

Install the bolts securing the exhaust manifold heat shield to the manifold.
Tighten the exhaust manifold heat shield bolts to 10 Nm (89 inch lbs.).

3. Connect the wire clips to the generator and generator bracket.
4. Lower the vehicle.
