135. Generator Installation

Generator Installation

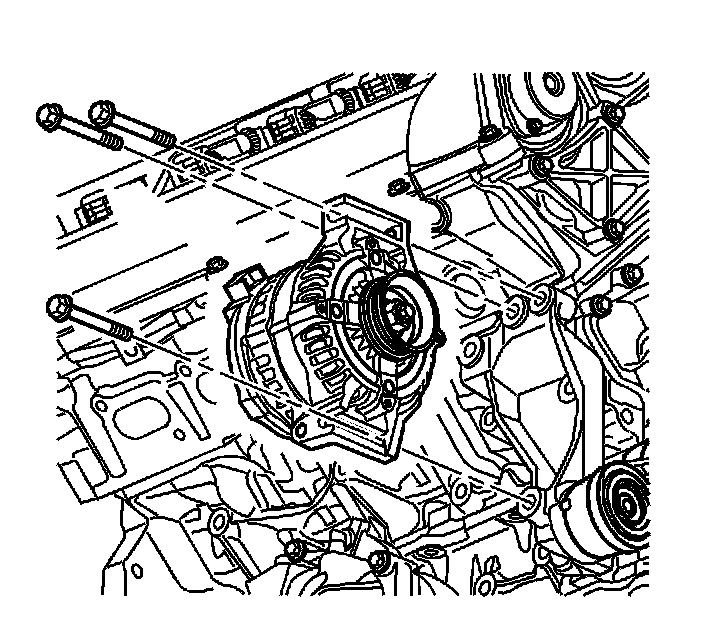

1. Place the generator in position to the generator bracket.
2. Loosely install the generator bolts.

Notice: Refer to Fastener Notice in Service Precautions.


3. Tighten the generator bolts in proper sequence.
^ Tighten the generator upper rear bolt to 50 Nm (37 ft. lbs.).
^ Tighten the generator lower bolt to 50 Nm (37 ft. lbs.).
^ Tighten the generator upper front bolt to 50 Nm (37 ft. lbs.).
