Body Views
Body Views

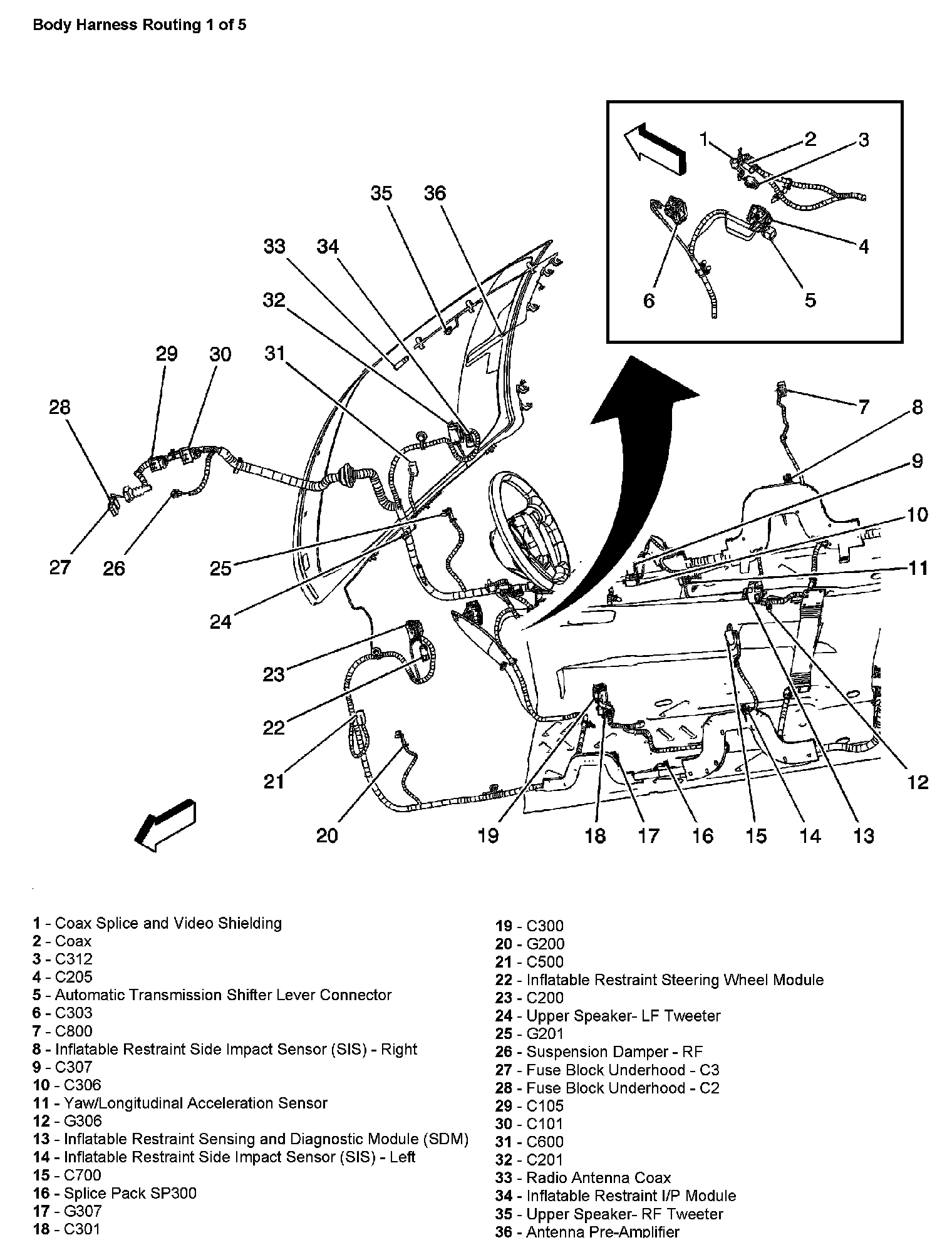

Body Harness Routing (Part 1):

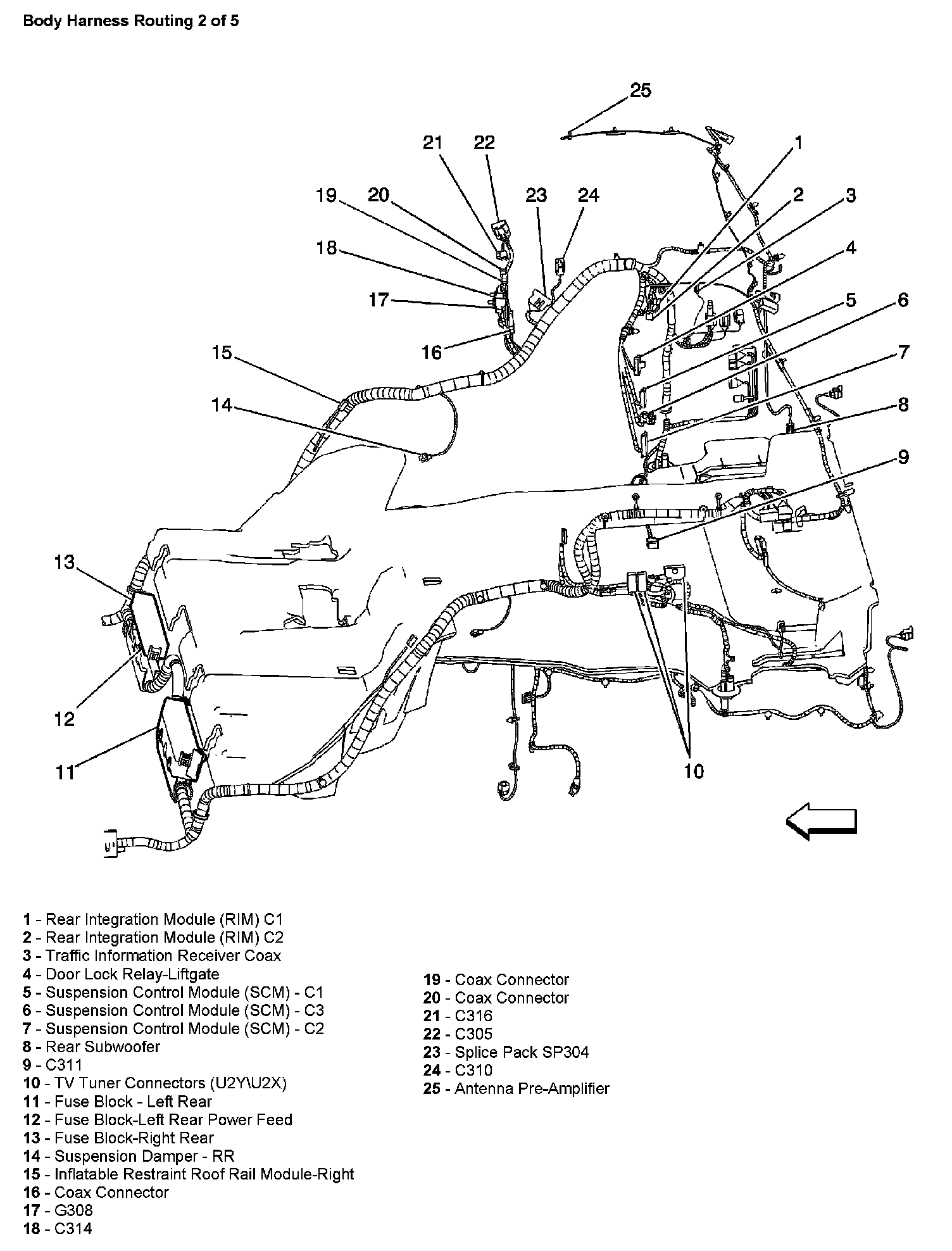

Body Harness Routing (Part 2):

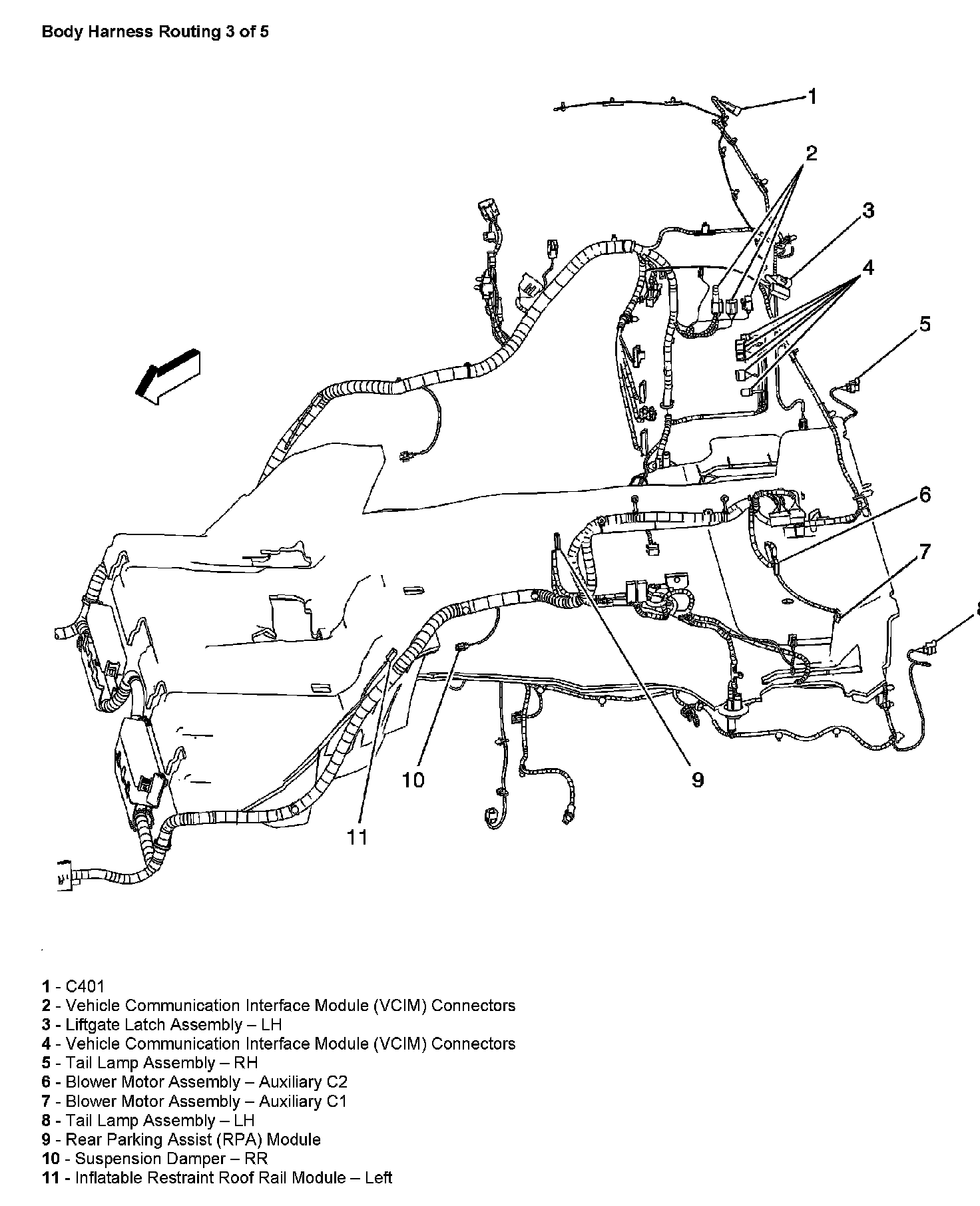

Body Harness Routing (Part 3):

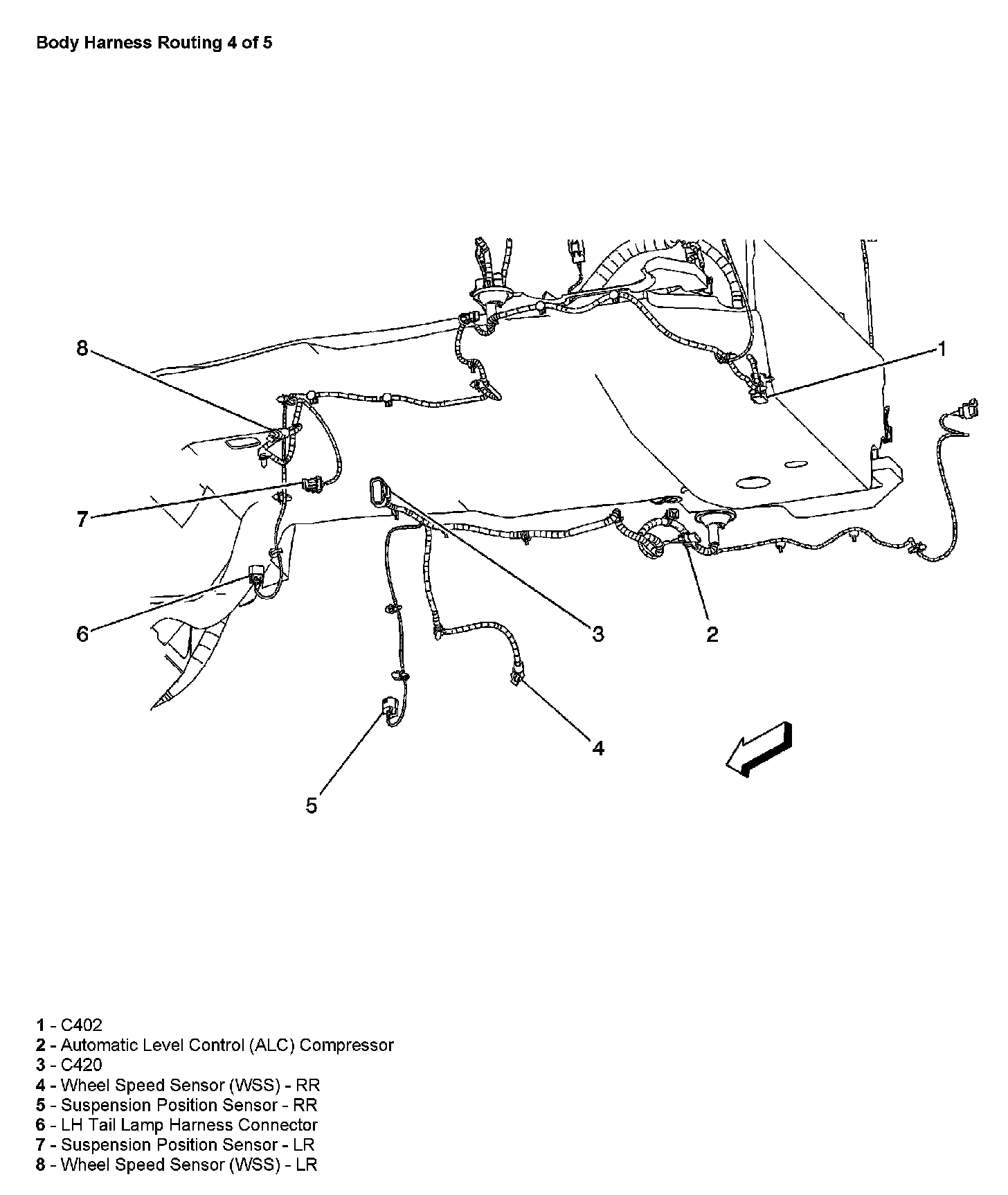

Body Harness Routing (Part 4):
Body Harness Routing (Part 5) (Splices):
