Cadillac Truck
>>
2006
>>
SRX AWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Hazard Sensor
Power Trunk / Liftgate Hazard Sensor

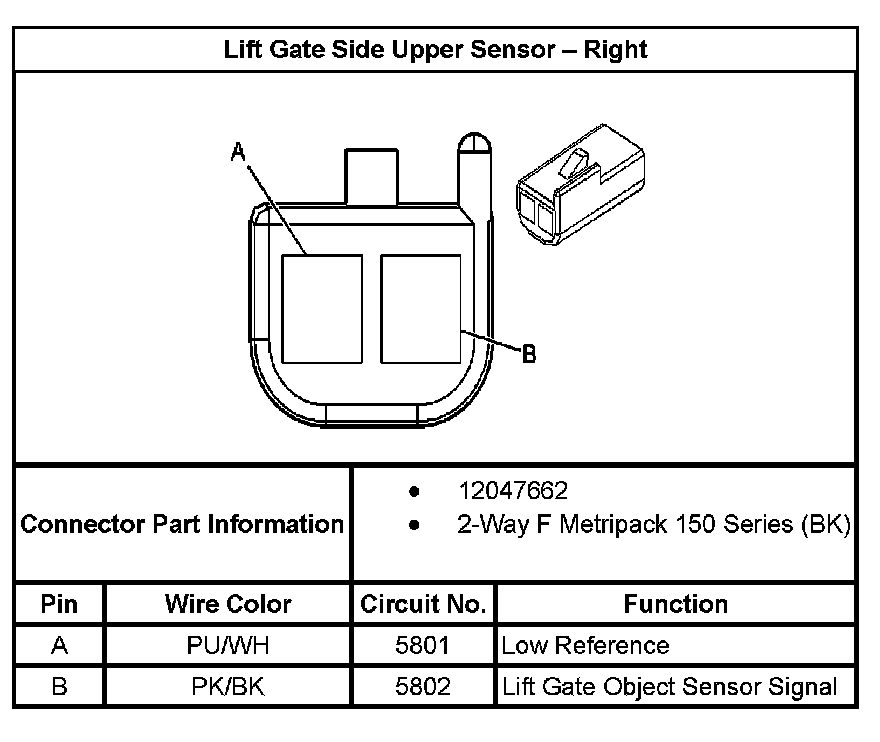

Lift Gate Side Upper Sensor - Right:
Lift Gate Side Upper Sensor - Right:
