Home
>>
Cadillac Truck
>>
2006
>>
SRX AWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C700 - C799
>>
C701
C701

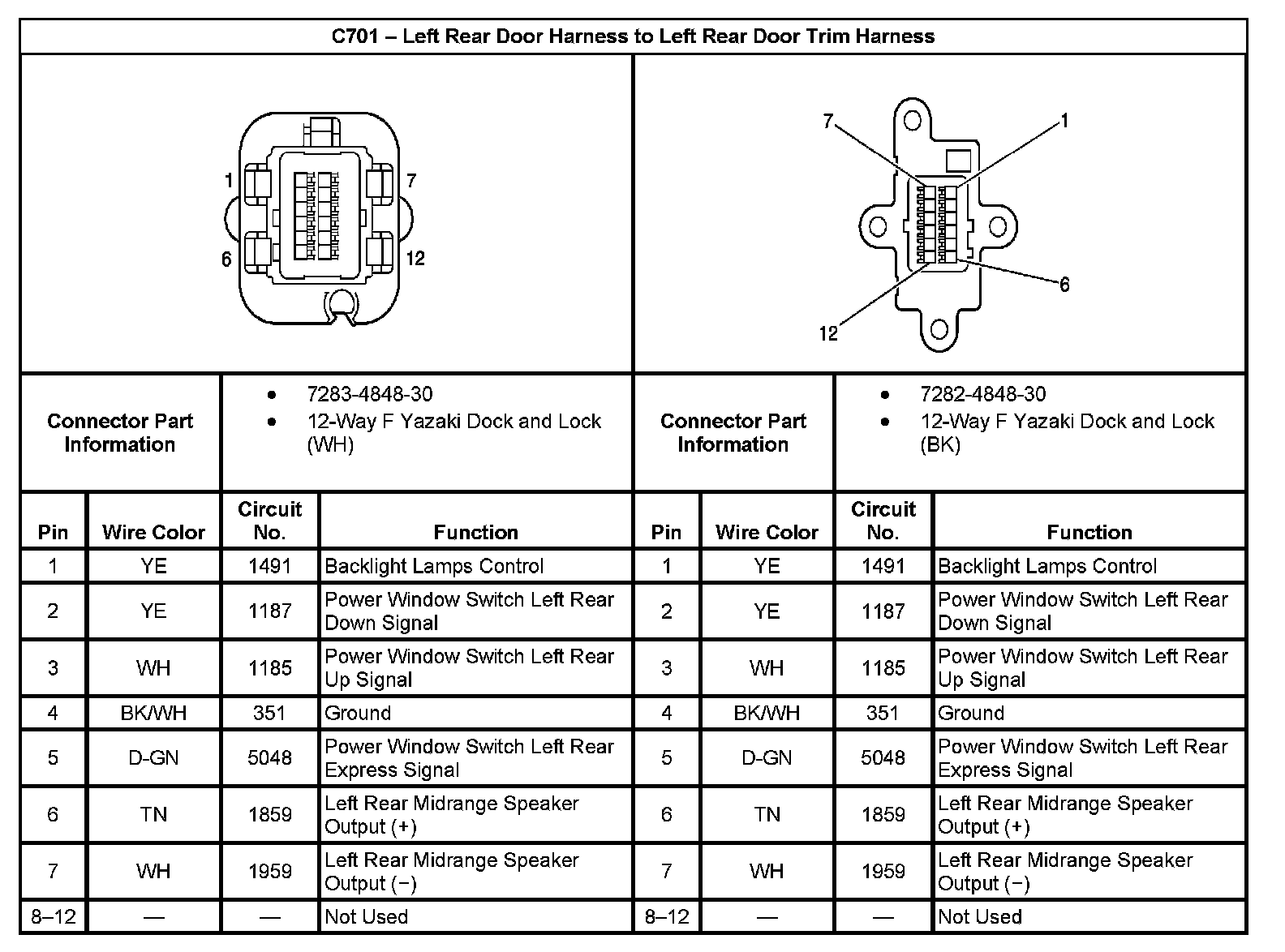

C701 - Left Rear Door Harness To Left Rear Door Trim Harness:
