Cadillac Truck
>>
2006
>>
SRX AWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Shift Interlock, A/T
>>
System Diagram
System Diagram

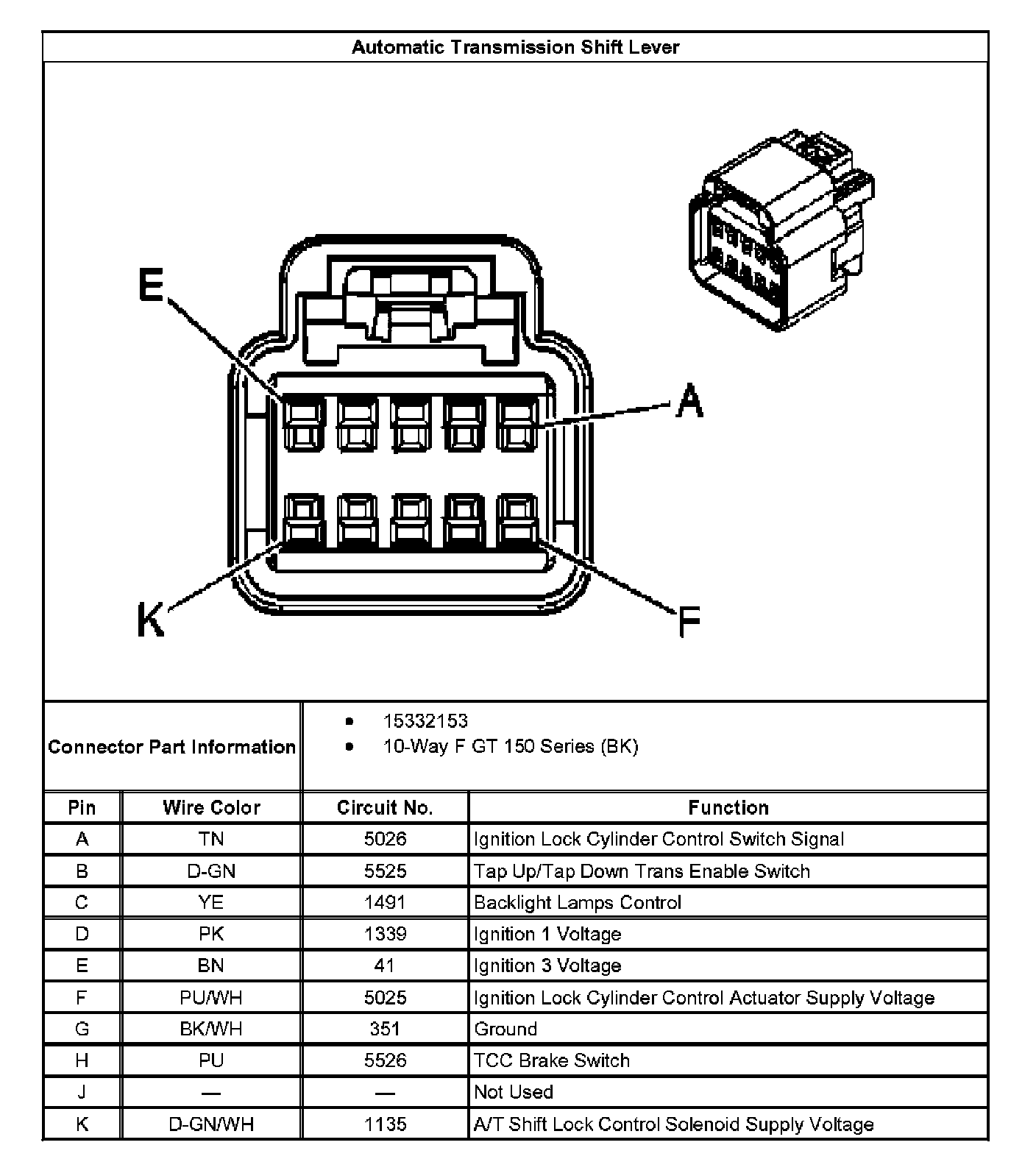

Automatic Transmission Shift Lever:
