Power Steering Pump Installation

Tools Required
^ J25033-C Pulley Installer

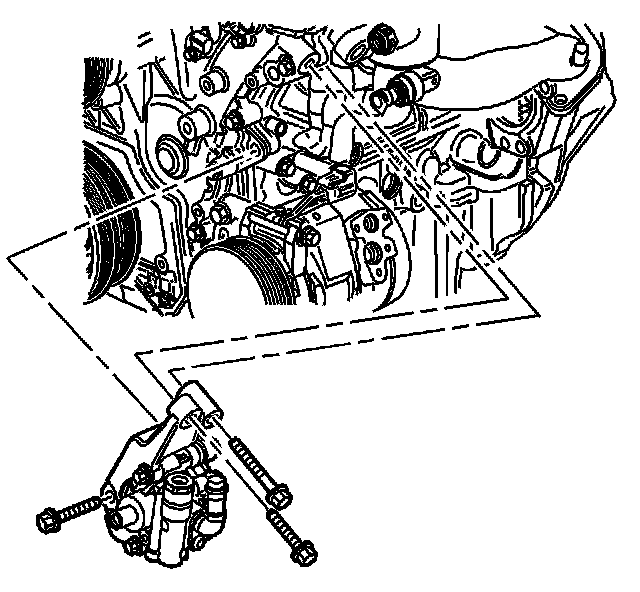

1. Place the power steering pump in position to the cylinder block.

Important: Follow the procedure sequence in order to prevent drive belt mis-alignment and/or possible damage/distortion to the components.

2. Loosely install the power steering side bolts in order to hold the power steering pump in position.
3. Place the power steering front bracket in position.
4. Loosely install the power steering front bracket bolts.
5. Hold the power steering pump firmly against the engine block.
6. Tighten the power steering pump front bracket bolt.
Tighten the power steering pump front bracket bolt to 50 Nm (37 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

7. Install the power steering pump side bolts.
Tighten the power steering pump side bolts to 50 Nm (37 ft. lbs.).

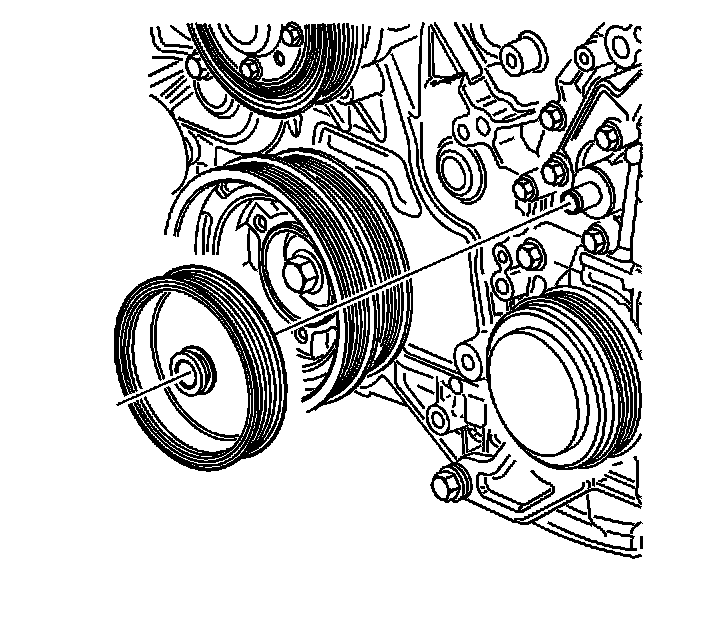

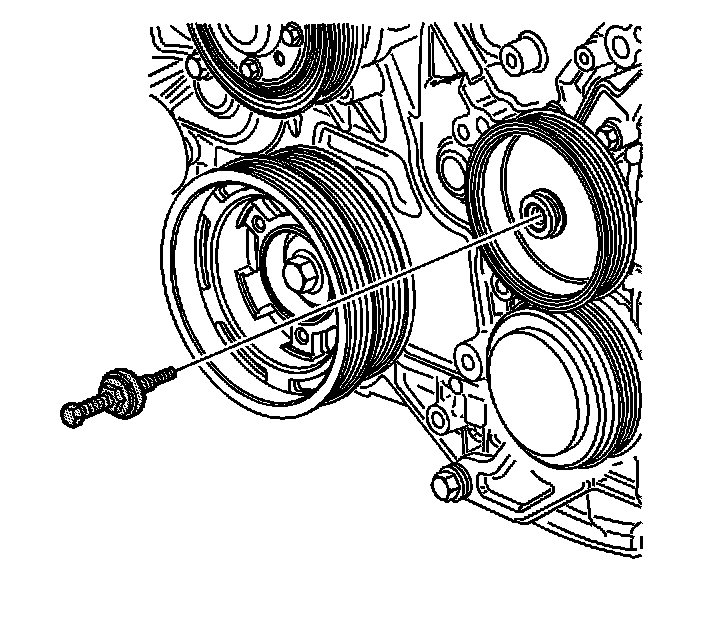

8. If removed, place power steering pulley in position to the power steering pump.





9. Install the J25033-C into the threads of the power steering pump shaft. Ensure the J25033-C threads completely into the shaft of the power steering pump before the pressing components of the J25033-C contact the power steering pulley.

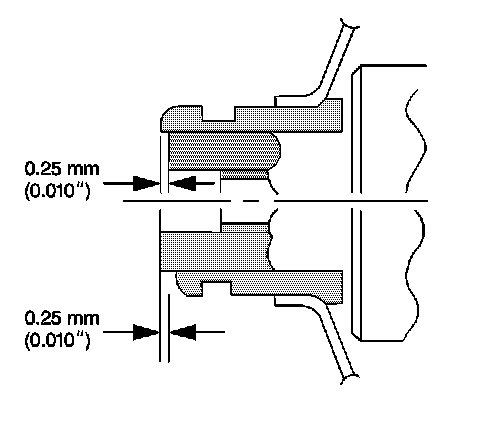

10. Tighten the nut on the J25033-C until the hub of the power steering pulley is flush with the end of the power steering pump shaft.
11. Remove the J25033-C.
