Radiator: Service and Repair

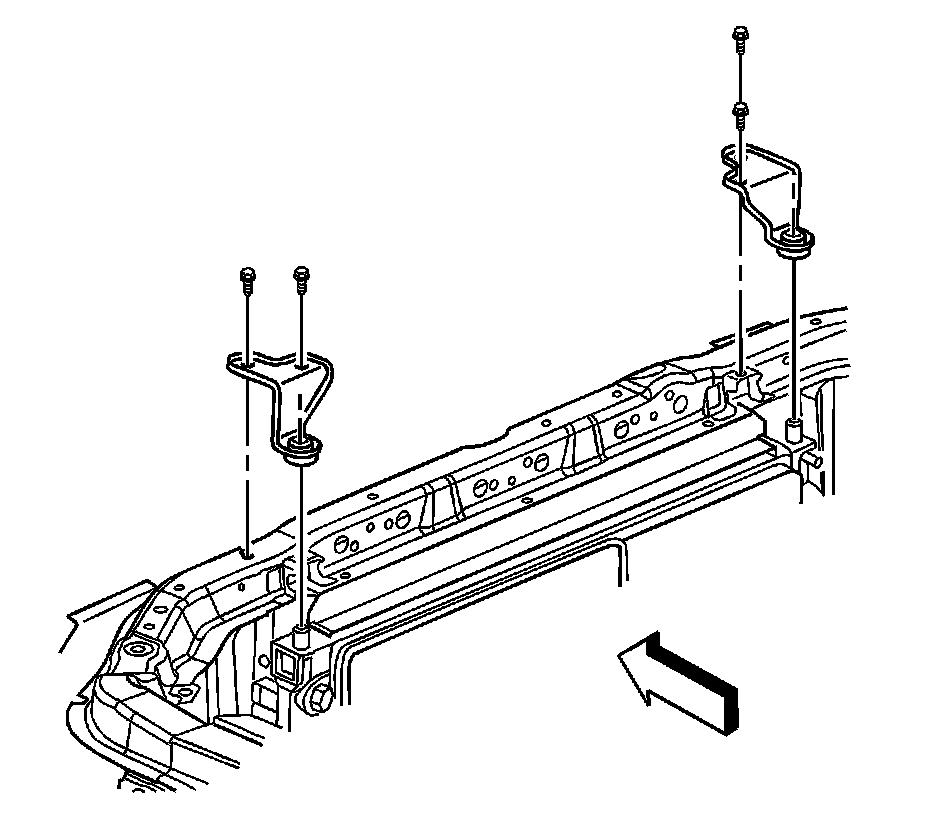

Radiator Support Bracket Replacement
Removal Procedure





1. Remove the radiator support bolts.
2. Remove the radiator support brackets.

Installation Procedure





1. Install the radiator support brackets.
2. Install the radiator support bolts.
Tighten the bolts to 9 Nm (80 inch lbs.).

Notice: Refer to Fastener Notice in Service Precautions.
