Fan Shroud: Service and Repair

Fan Shroud Replacement (LY7)

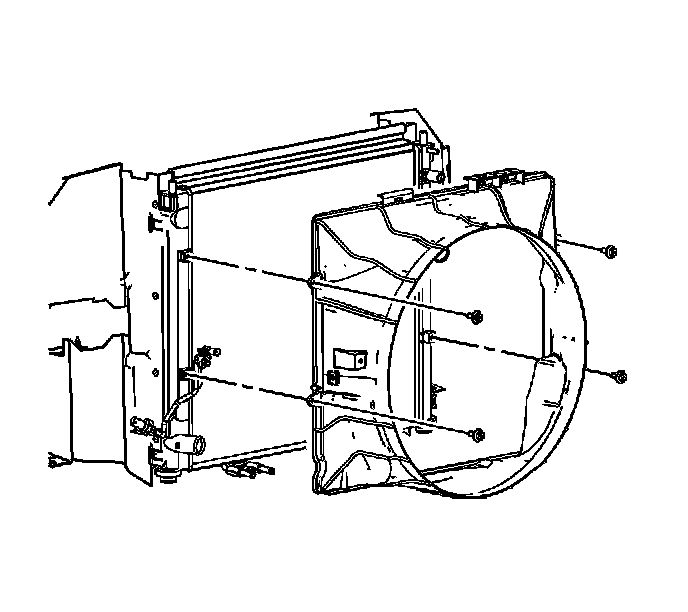

Removal Procedure





1. Remove the fan.
2. Disconnect the condenser tube from the fan shroud retainer clip.
3. Remove the cooling fan shroud retaining bolts.
4. Remove the cooling fan shroud.

Installation Procedure





1. Install the cooling fan shroud.
2. Install the cooling fan shroud retaining bolts.
Tighten the bolts to 6.5 Nm (58 inch lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

3. Connect the condenser tube to the fan shroud retainer clip.
4. Install the fan.
