Cadillac Truck
>>
2006
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tail Lamp
Tail Lamp

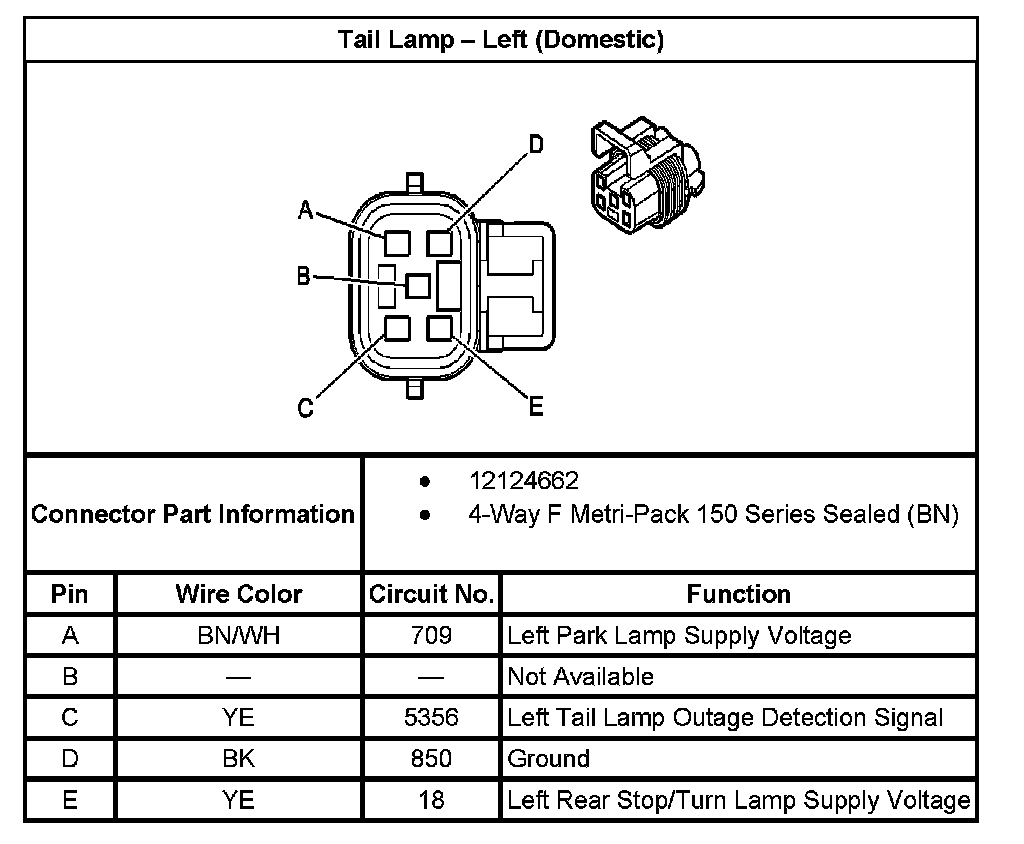

Tail Lamp - Left (Domestic):

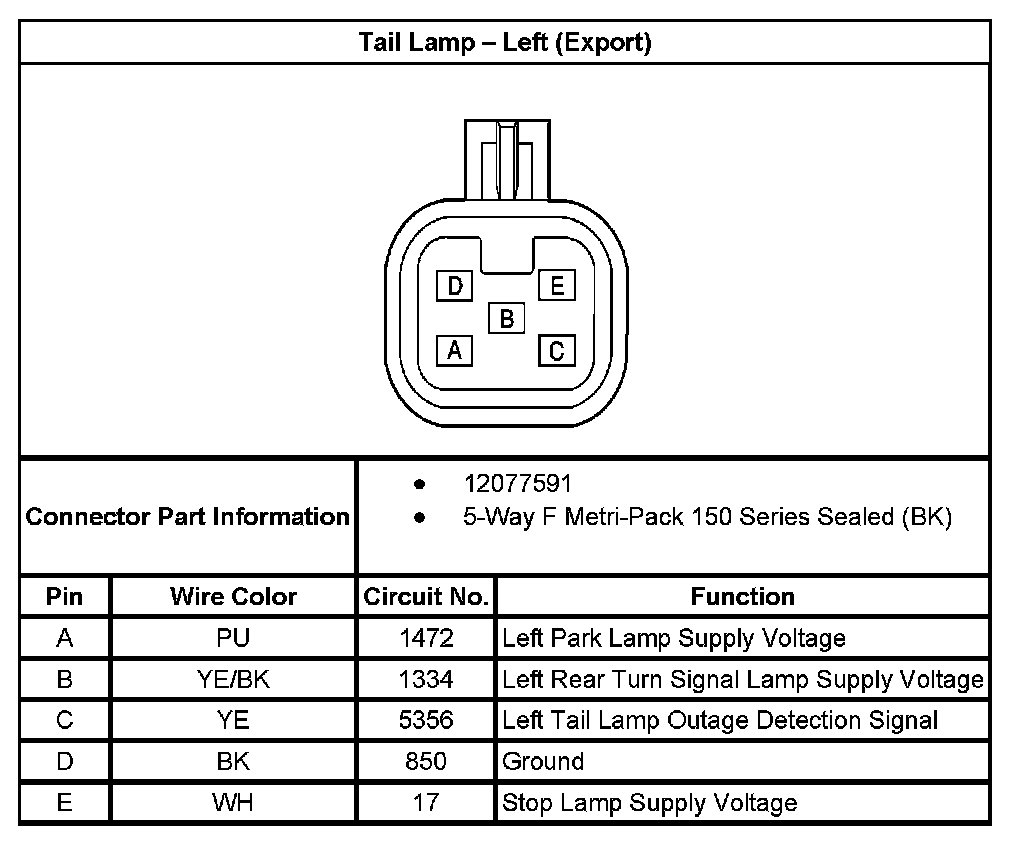

Tail Lamp - Left (Export):

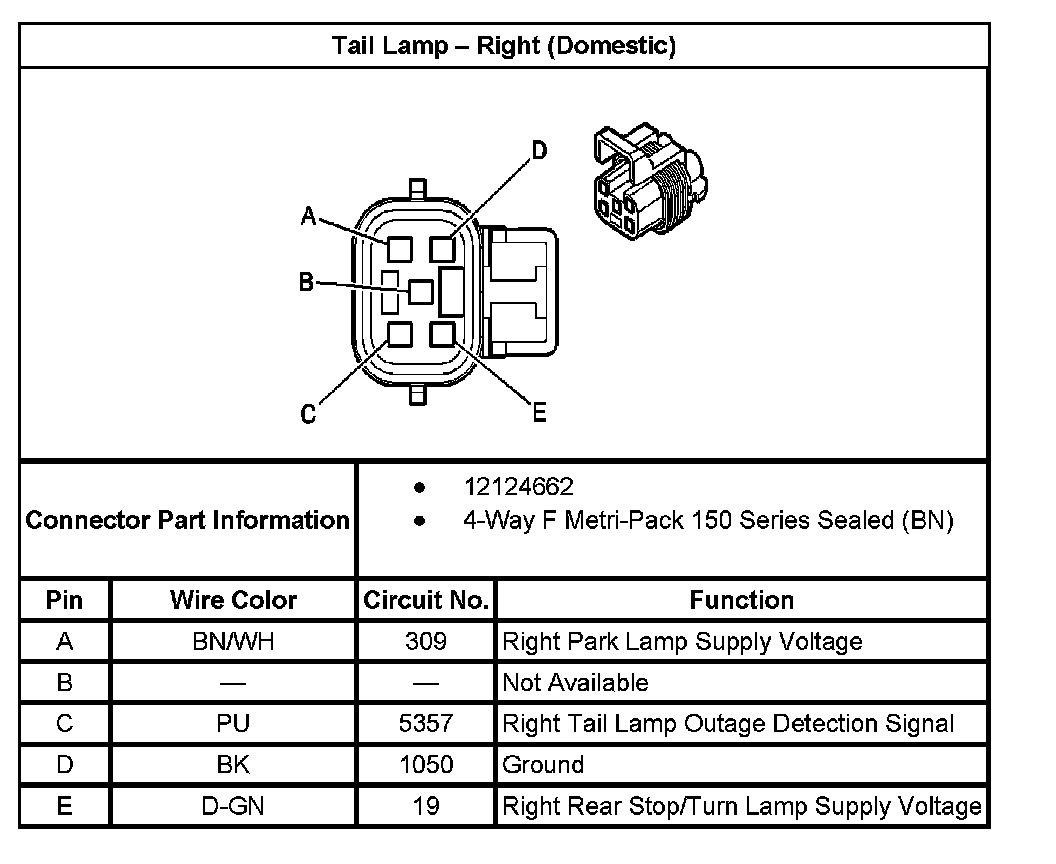

Tail Lamp - Right (Domestic):

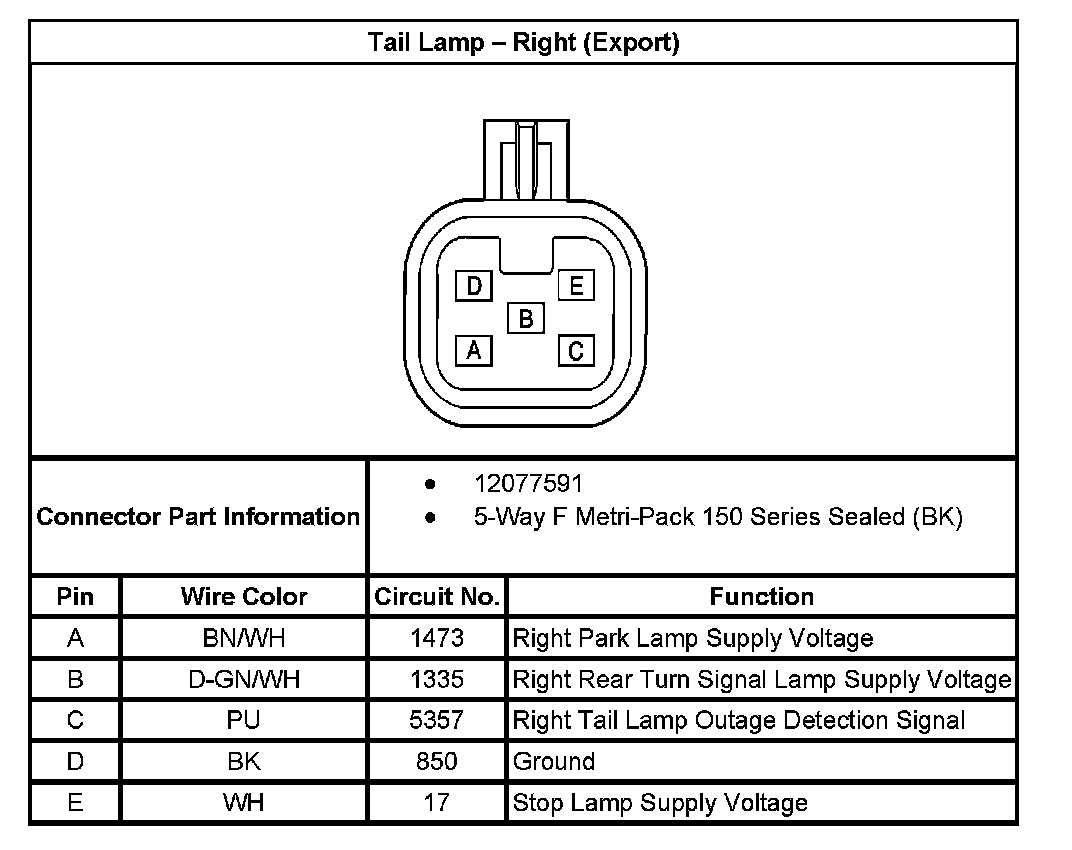

Tail Lamp - Right (Export):
