Speaker
>>
Right A Pillar Tweeter
Right A Pillar Tweeter

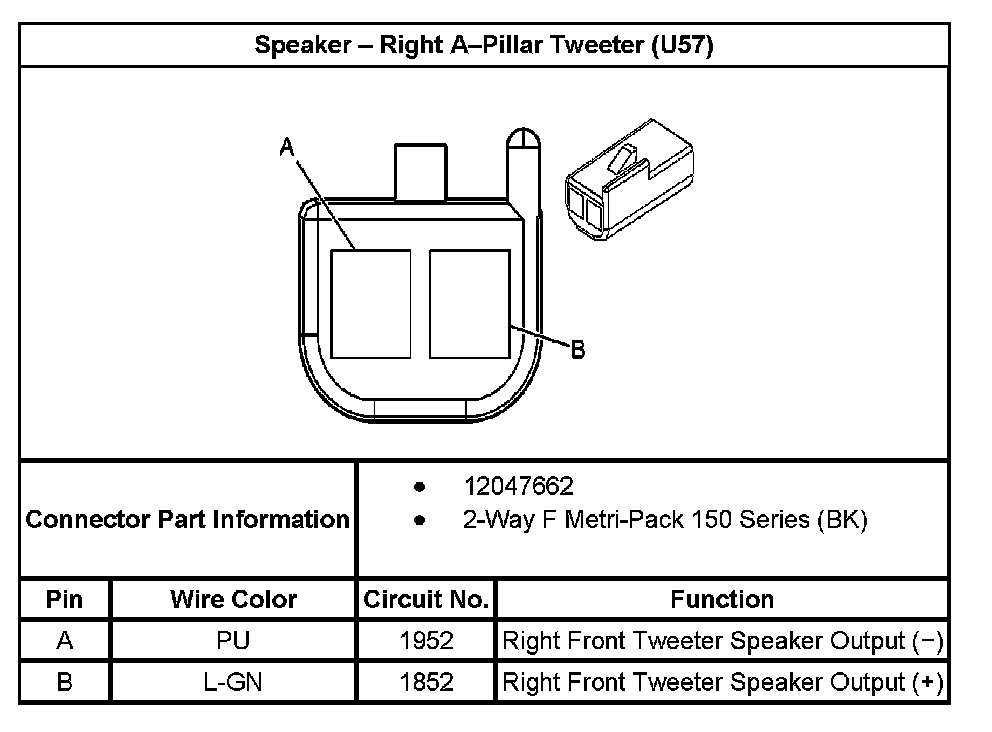

Speaker - Right A-Pillar Tweeter (With RPO Code U57):

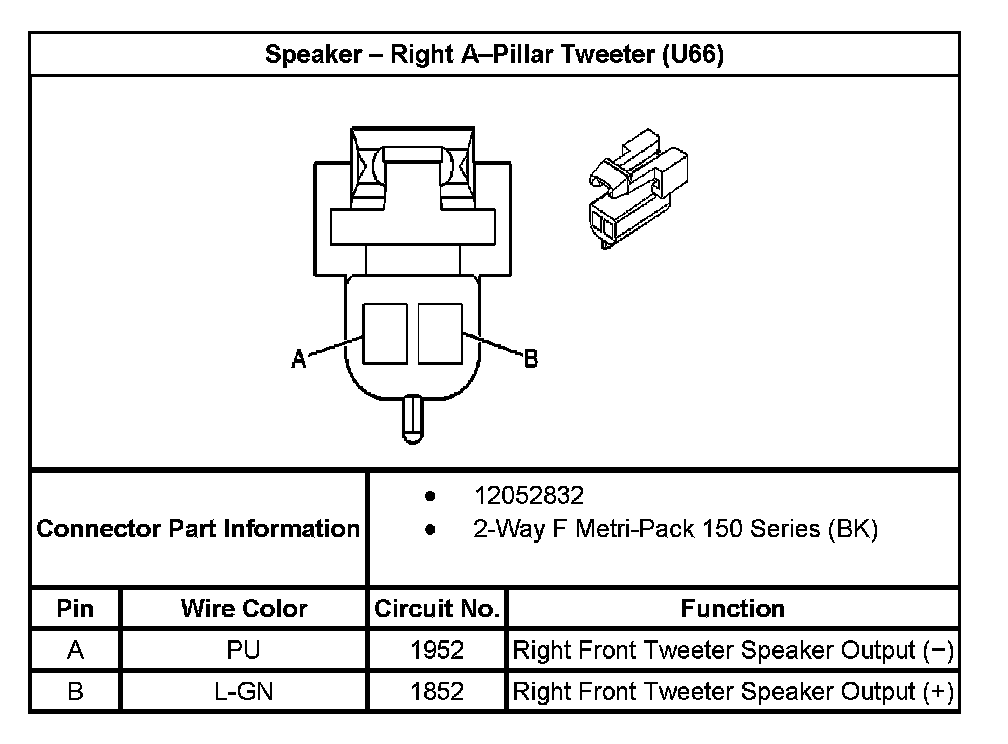

Speaker - Right A-Pillar Tweeter (With RPO Code U66):
