Cadillac Truck
>>
2006
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
Rear Subwoofer
Rear Subwoofer

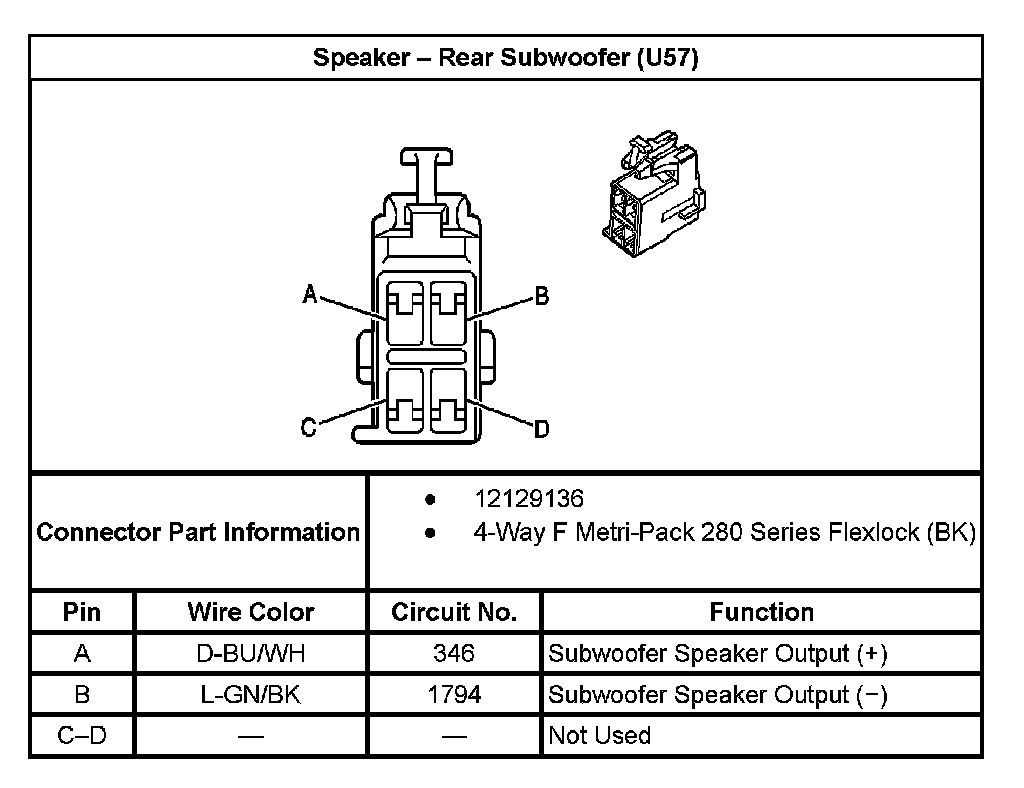

Speaker - Rear Subwoofer (With RPO Code U57):

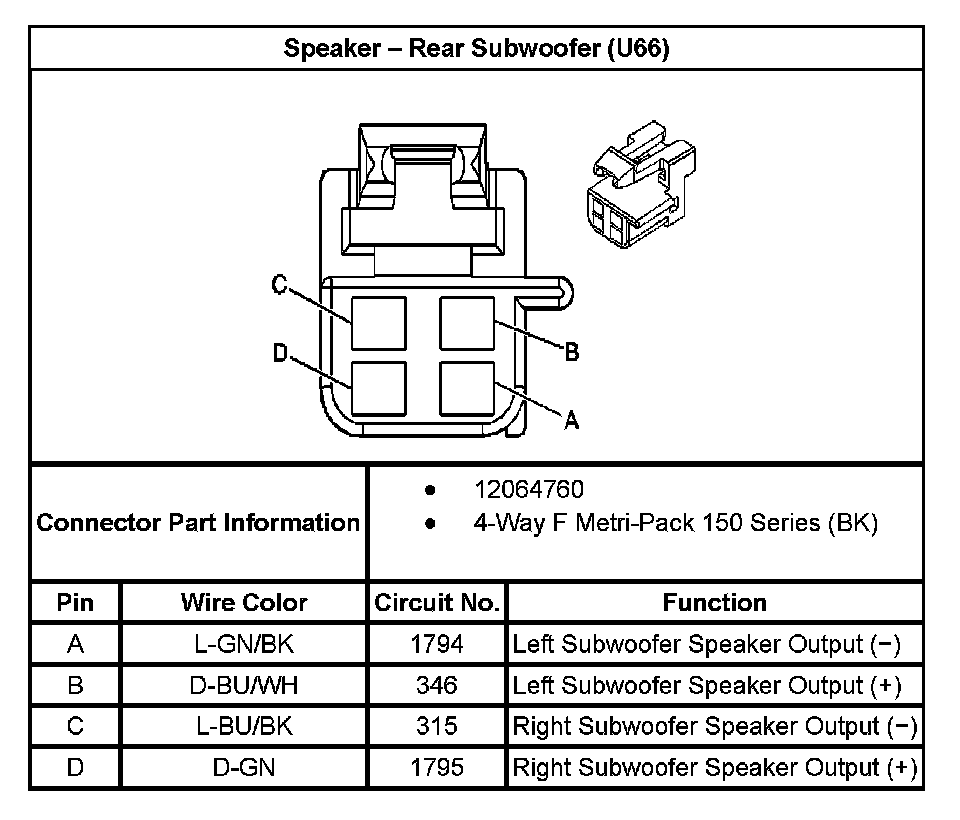

Speaker - Rear Subwoofer (With RPO Code U66):
