Speaker
>>
Left A Pillar Tweeter
Left A Pillar Tweeter

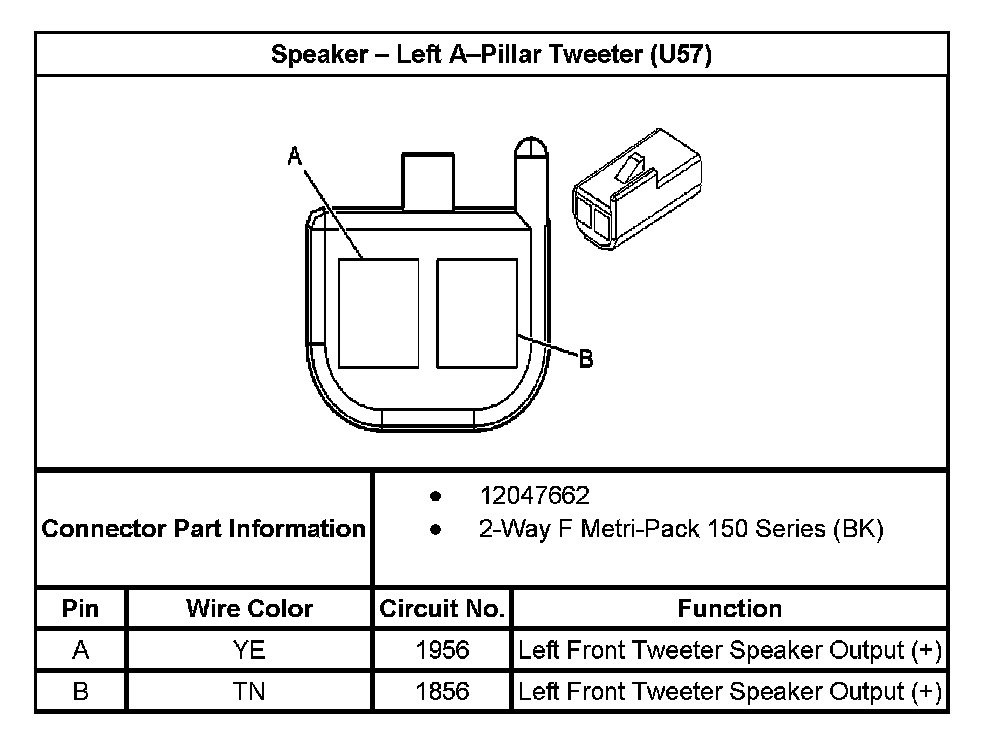

Speaker - Left A-Pillar Tweeter (With RPO Code U57):

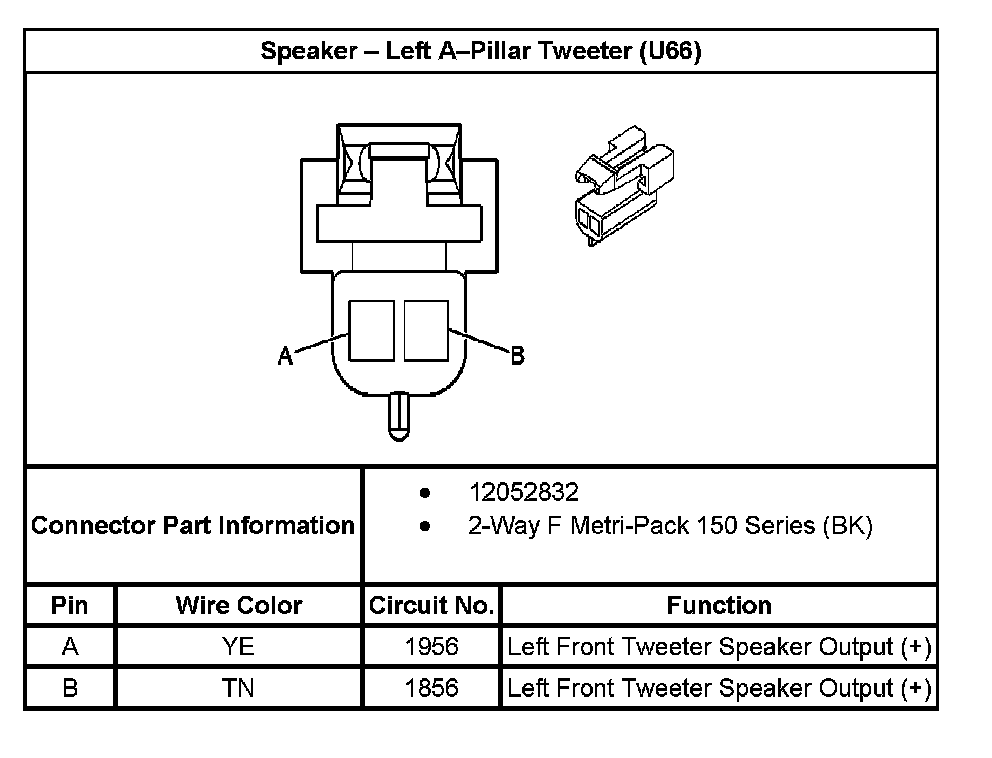

Speaker - Left A-Pillar Tweeter (With RPO Code U66):
