Cadillac Truck
>>
2006
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
Radio C3
Radio C3
Radio C3 (With RPO Code U2R/U2S):

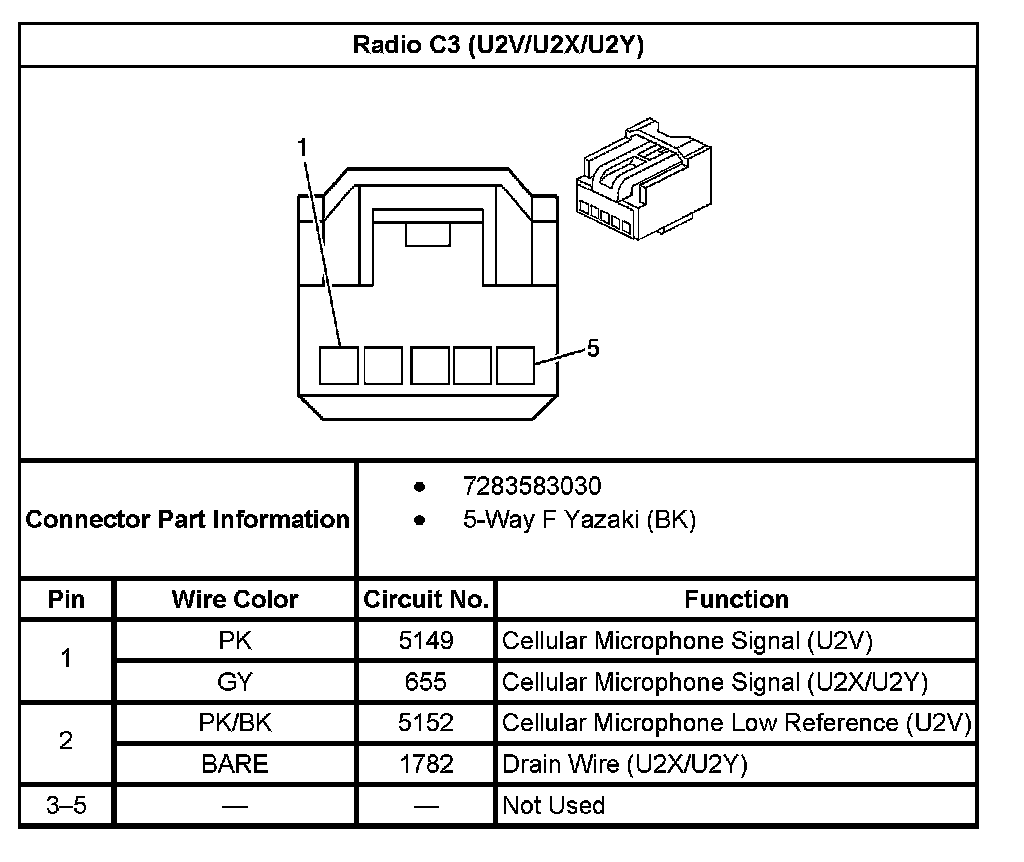

Radio C3 (With RPO Code U2V/U2X/U2Y):
