Power Seat Switch
>>
Seat Lumbar Switch
Seat Lumbar Switch

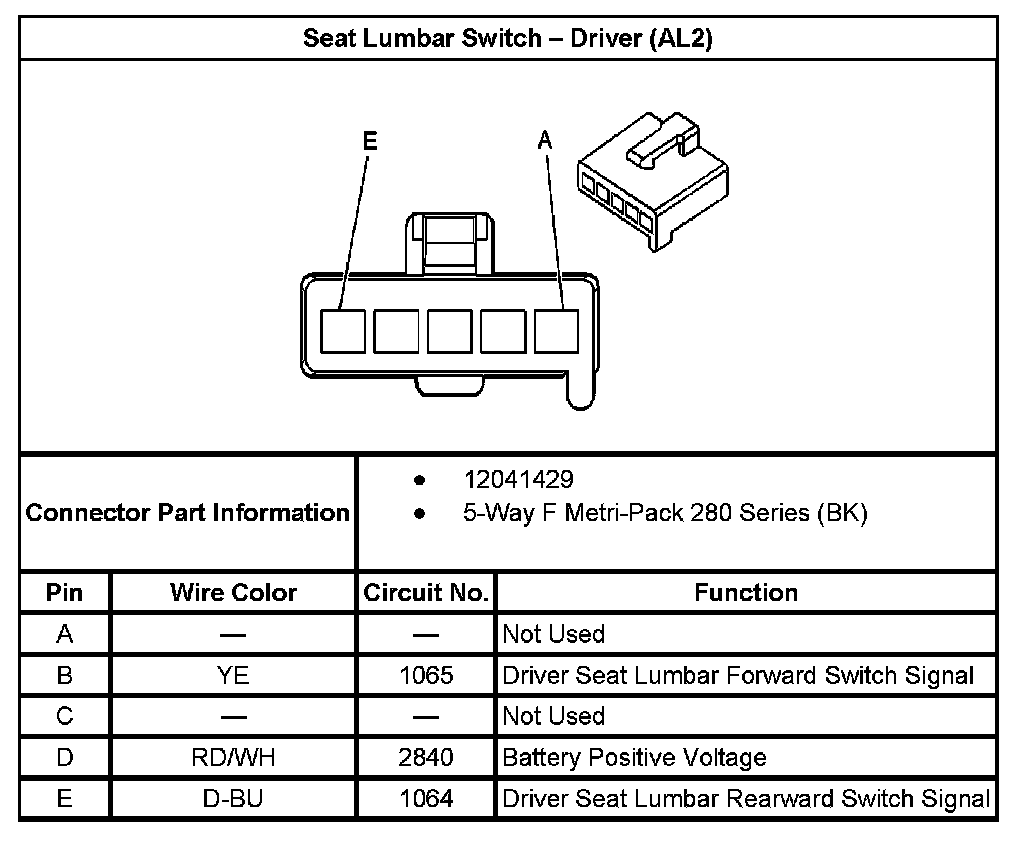

Seat Lumbar Switch - Driver (With RPO Code AL2):

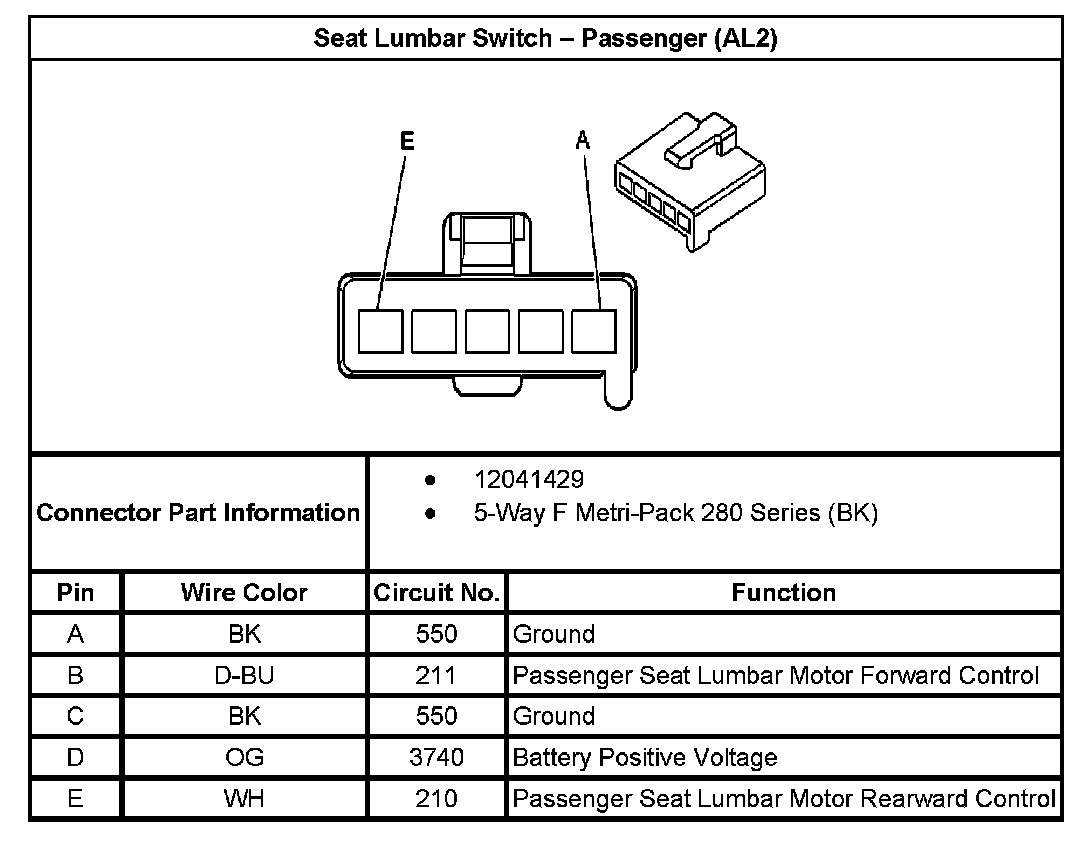

Seat Lumbar Switch - Passenger (With RPO Code AL2):
