Cadillac Truck
>>
2006
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Seat Back Load Floor Position Switch (With RPO Code AM0)
Seat Back Load Floor Position Switch (With RPO Code AM0)

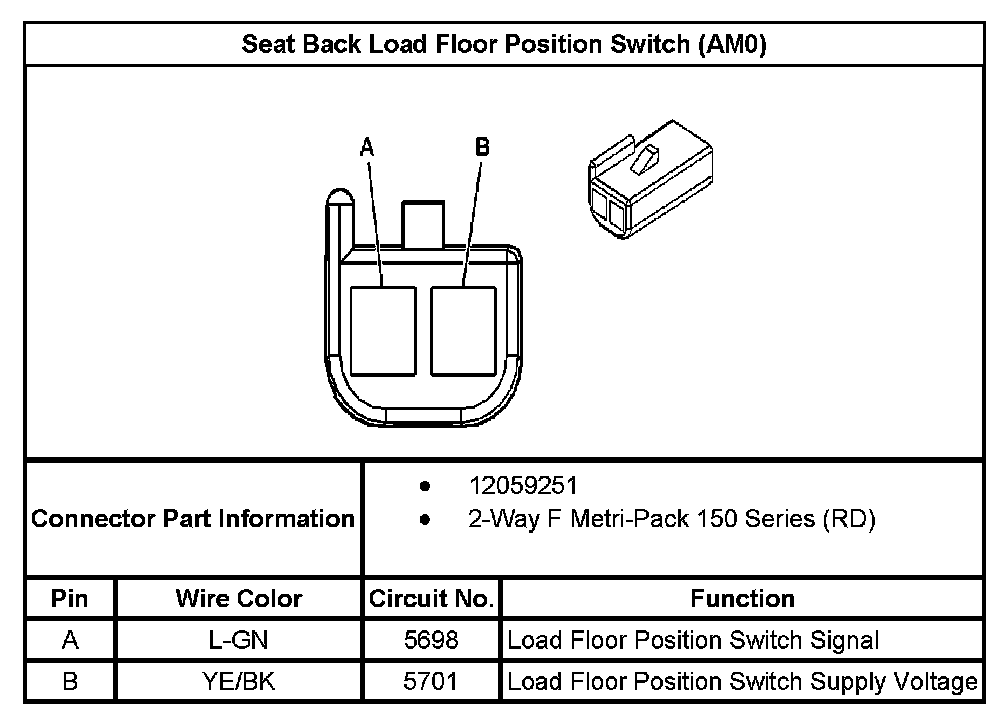

Seat Back Load Floor Position Switch (With RPO Code AM0):
