Cadillac Truck
>>
2006
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Folding Seat Stow Switch
Folding Seat Stow Switch
Folding Seat Stow Switch - Front (With RPO Code AM0):

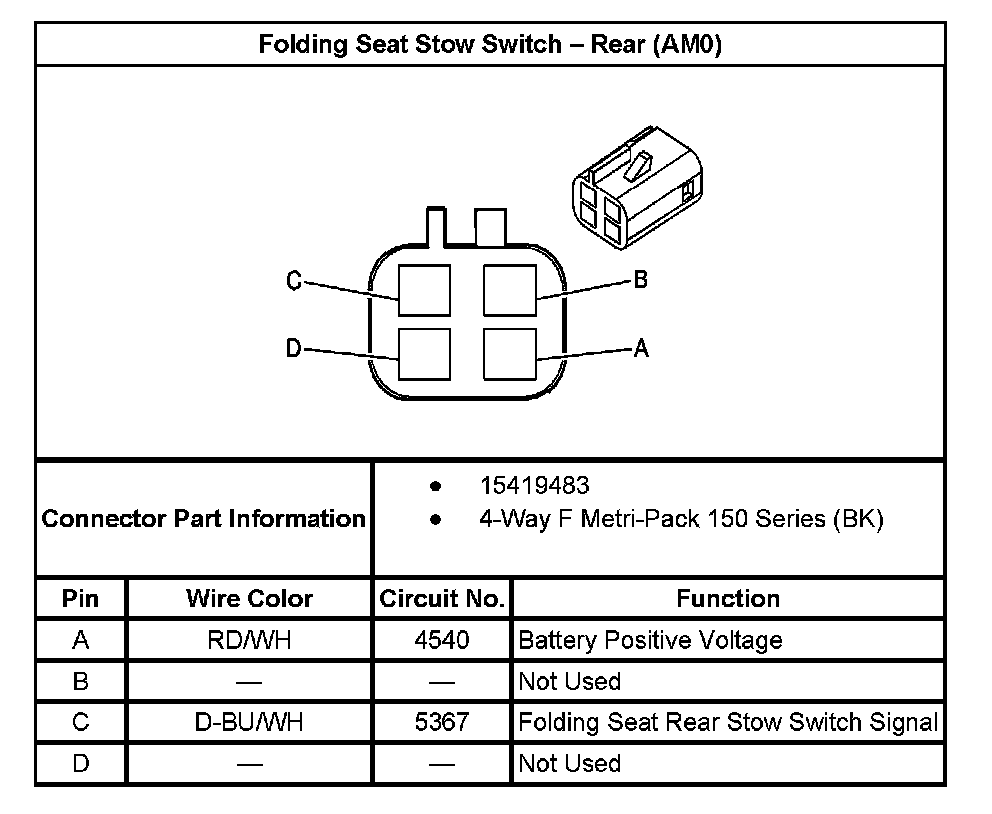

Folding Seat Stow Switch - Rear (With RPO Code AM0):
