Cadillac Truck
>>
2006
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
>>
Seat Lumbar Motor - Driver (With RPO Code AL2)
Seat Lumbar Motor - Driver (With RPO Code AL2)

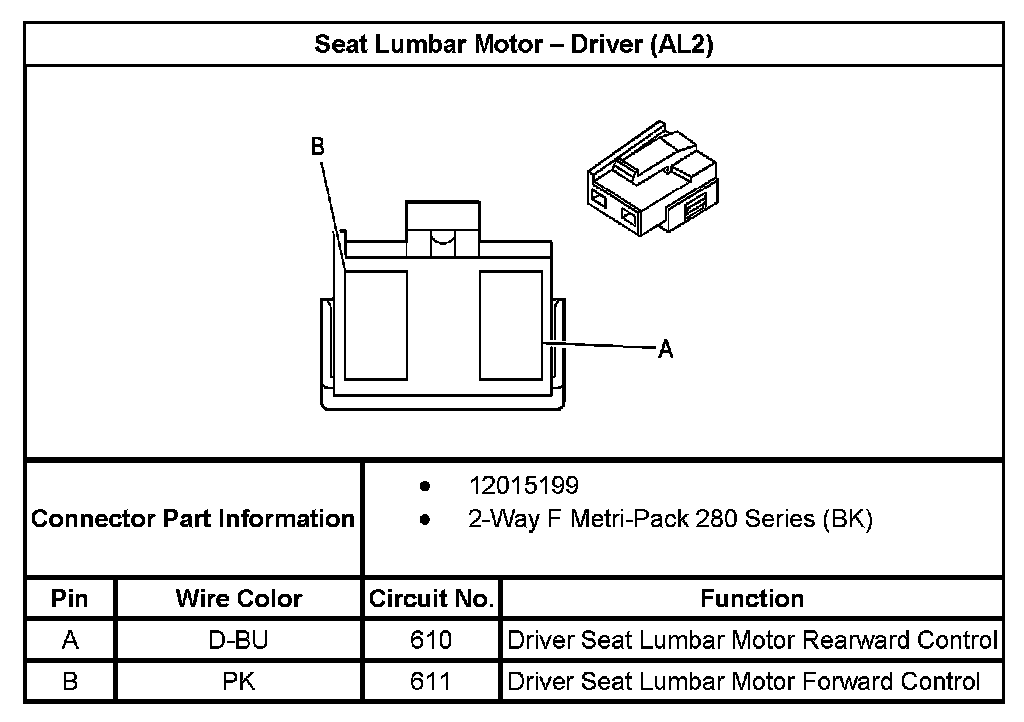

Seat Lumbar Motor - Driver (With RPO Code AL2):
