Power Seat Motor
>>
Folding Seat Rotation Motor Assembly (With RPO Code AM0)
Folding Seat Rotation Motor Assembly (With RPO Code AM0)

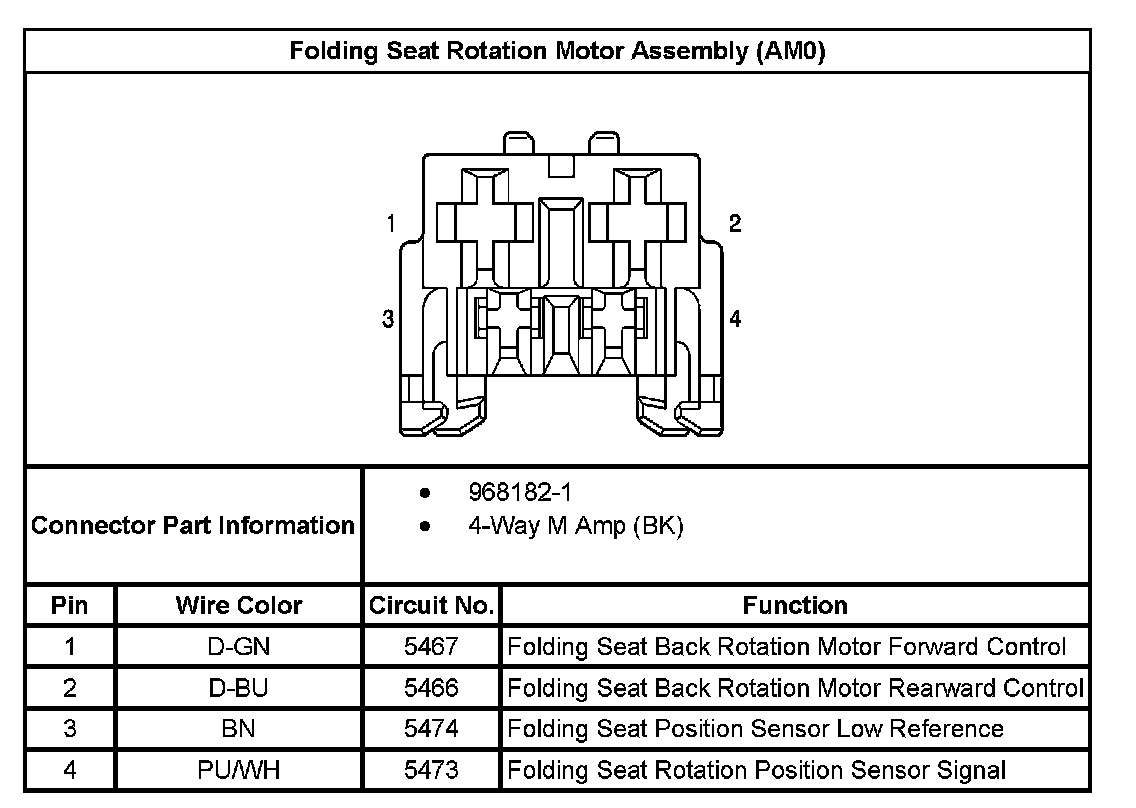

Folding Seat Rotation Motor Assembly (With RPO Code AM0):
