Cadillac Truck
>>
2006
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C109
C109

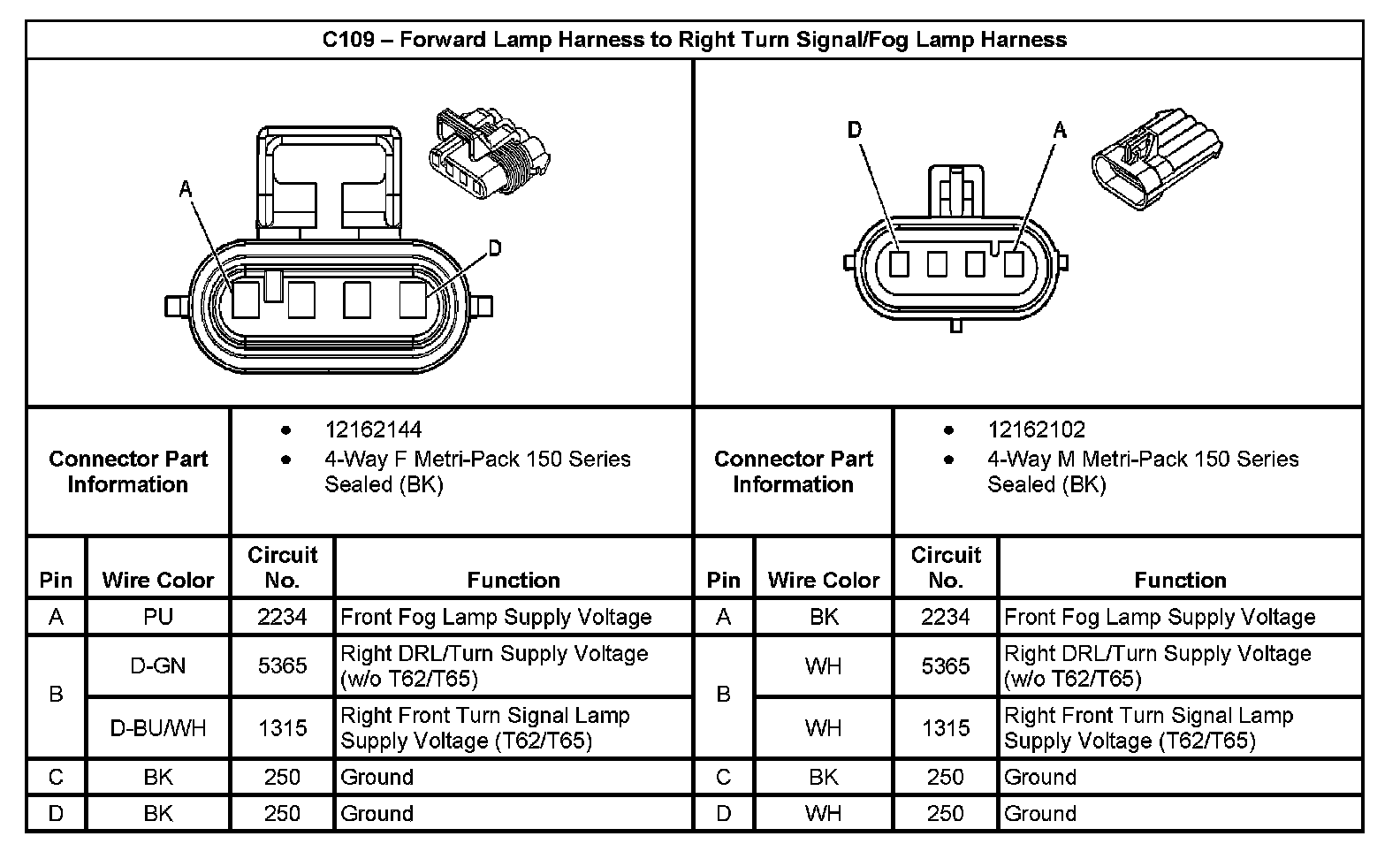

C109 - Forward Lamp Harness To Right Turn Signal/Fog Lamp Harness:
