Headlamp
>>
System Diagram
System Diagram

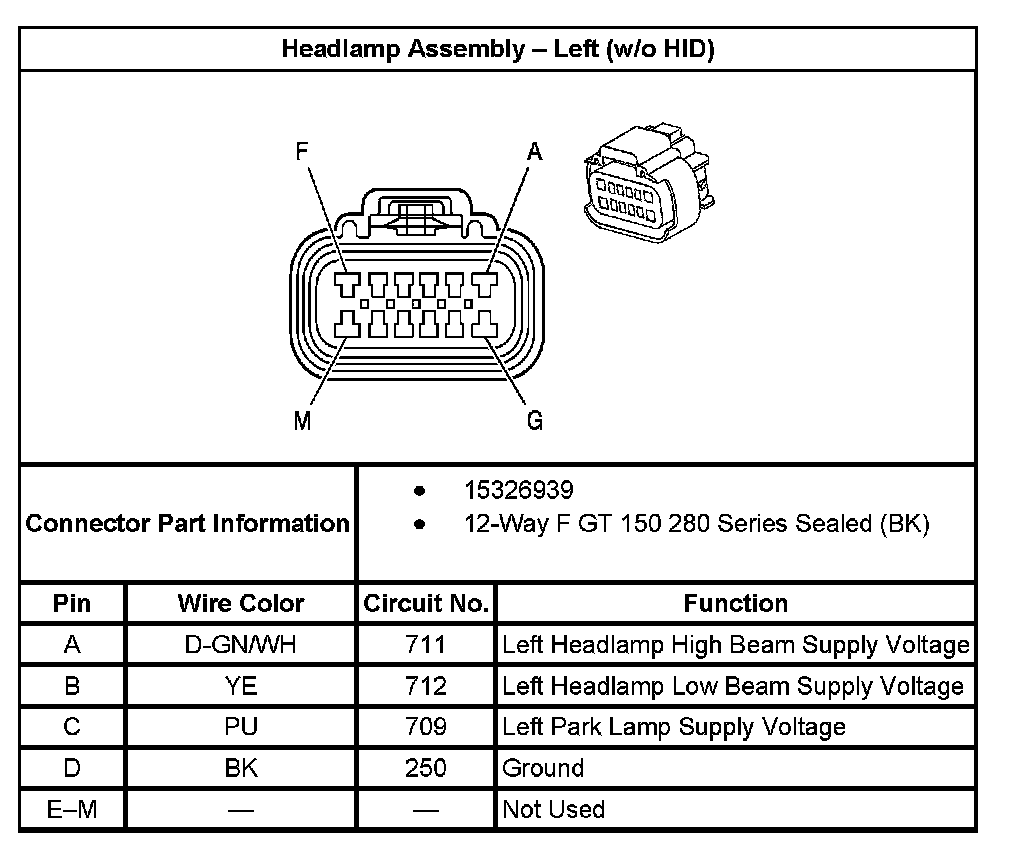

Headlamp Assembly - Left (Without HID):

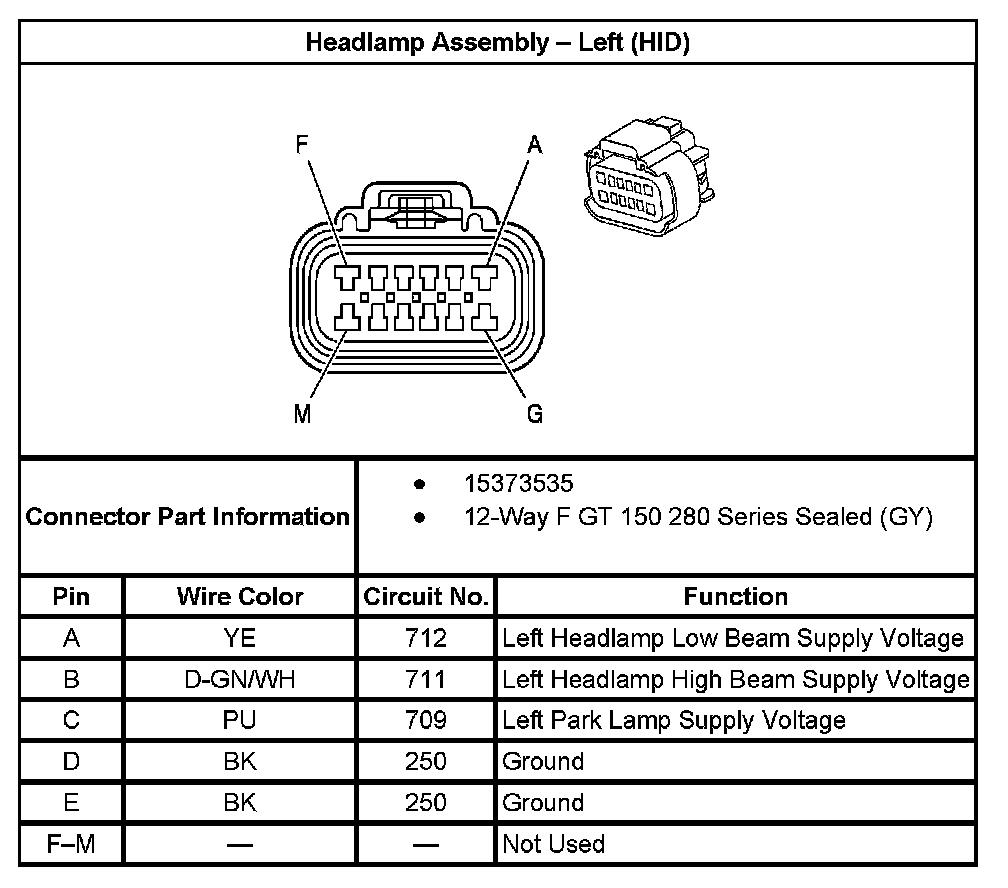

Headlamp Assembly - Left (HID):

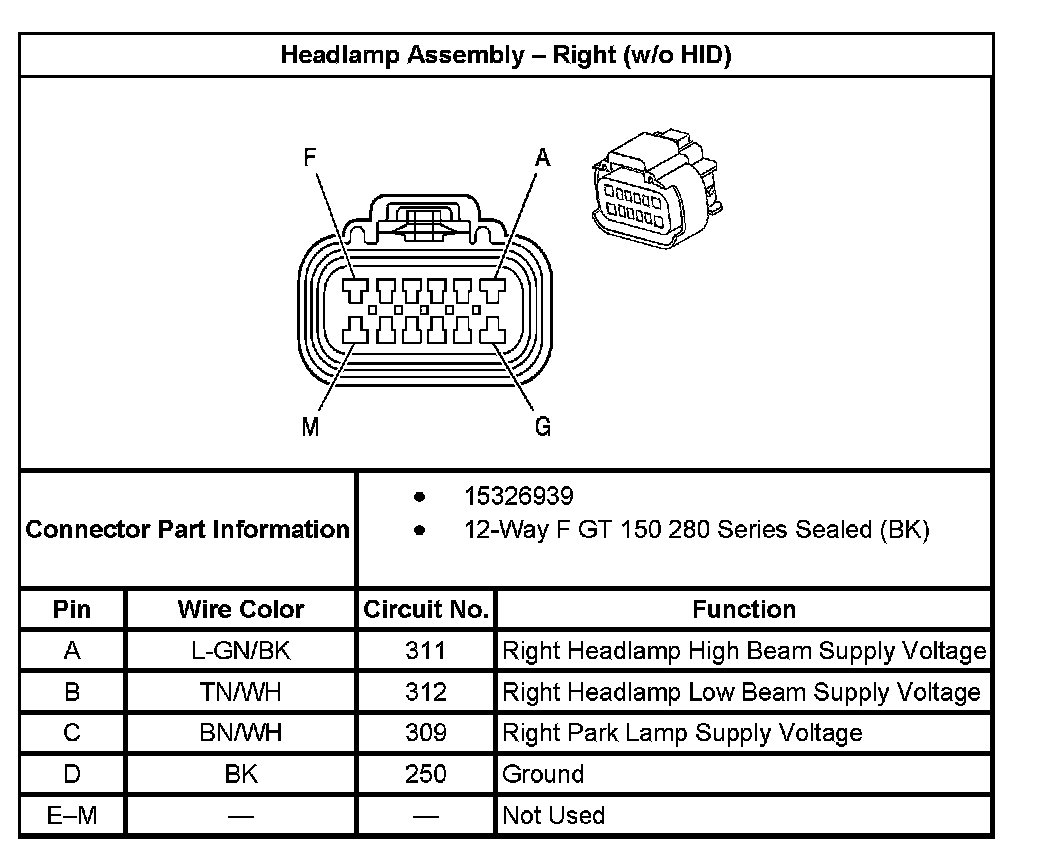

Headlamp Assembly - Right (Without HID):

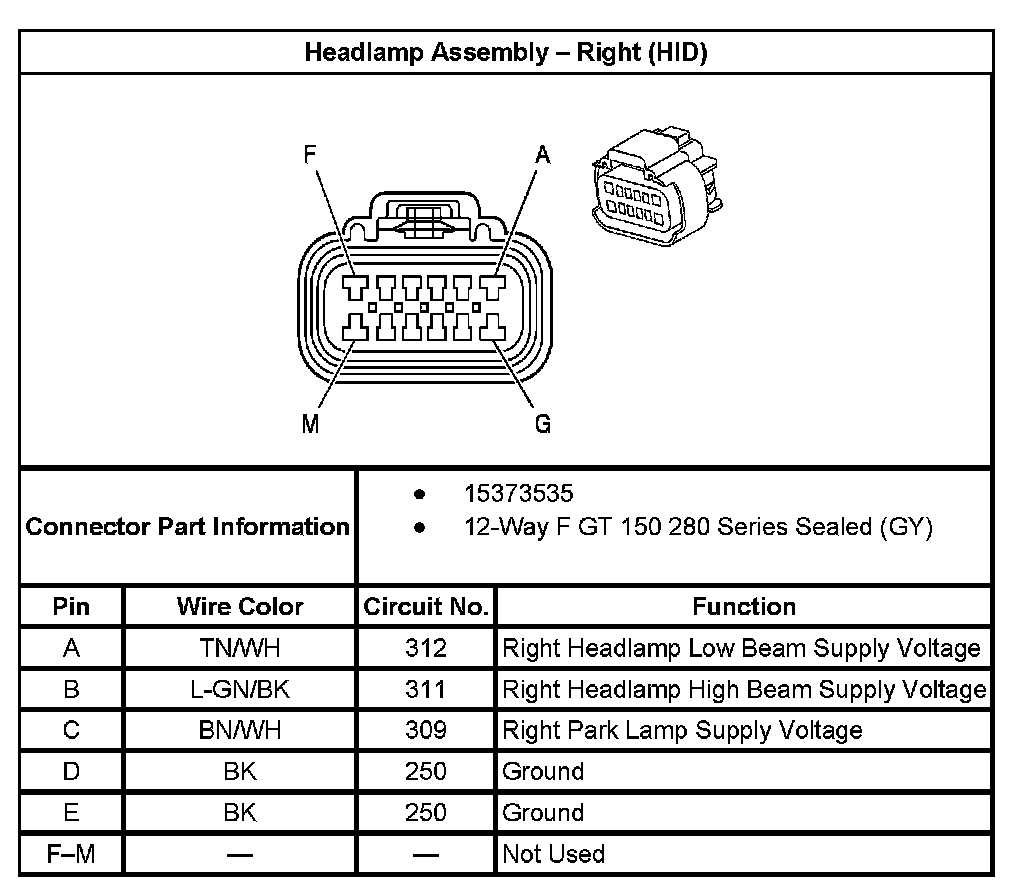

Headlamp Assembly - Right (HID):
