Home >> Cadillac Truck >> 2006 >> SRX AWD V6-3.6L VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> After-Run Coolant Pump

After-Run Coolant Pump

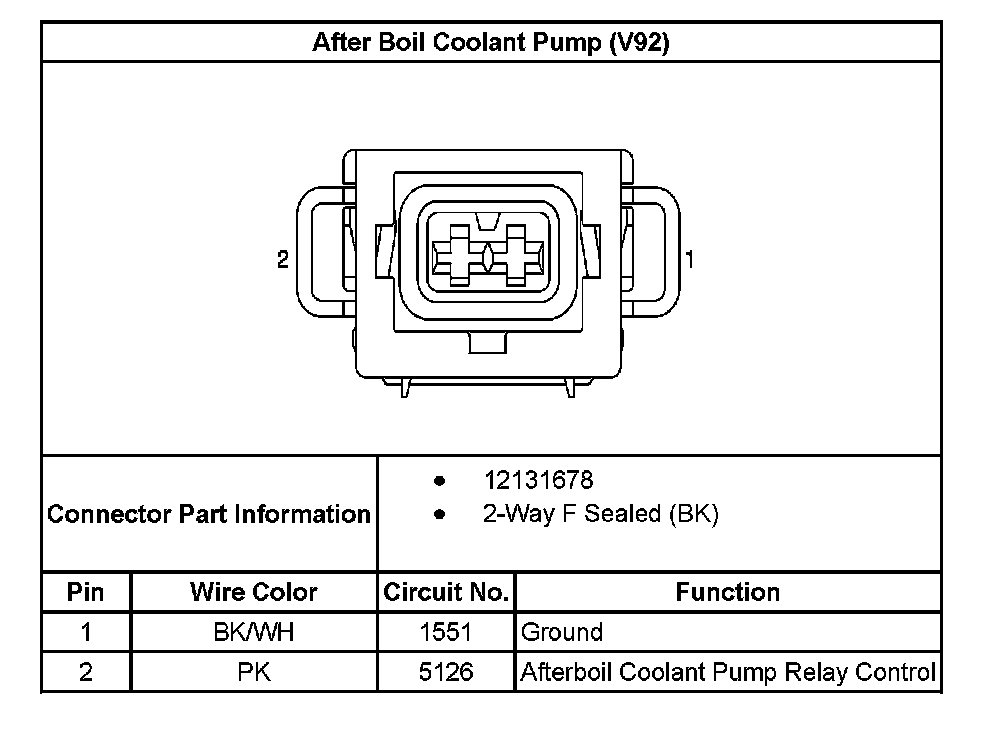

After Boil Coolant Pump (V92):
