Armrest Replacement - Rear No. 1

ARMREST REPLACEMENT - REAR NO. 1

REMOVAL PROCEDURE
1. Move the left side of the seat in the full forward position.

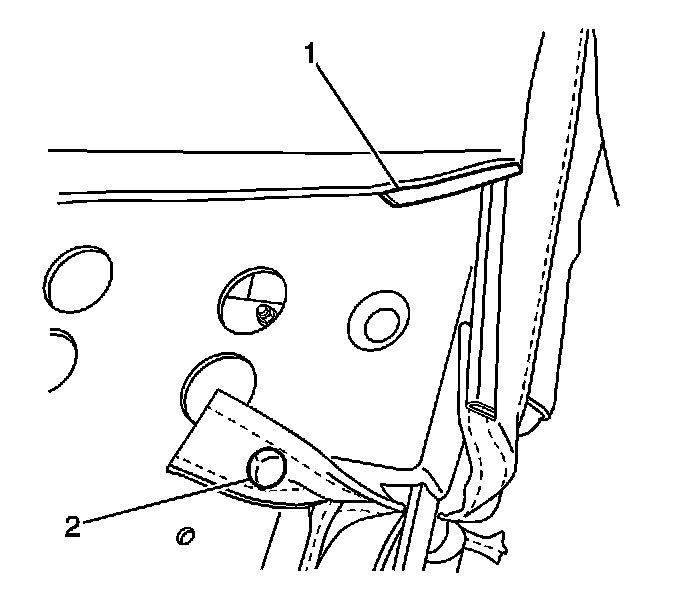

2. Release the J channel retainer (1) from the seat back.
3. Lift the seat back cover up to gain access to the armrest retainers.

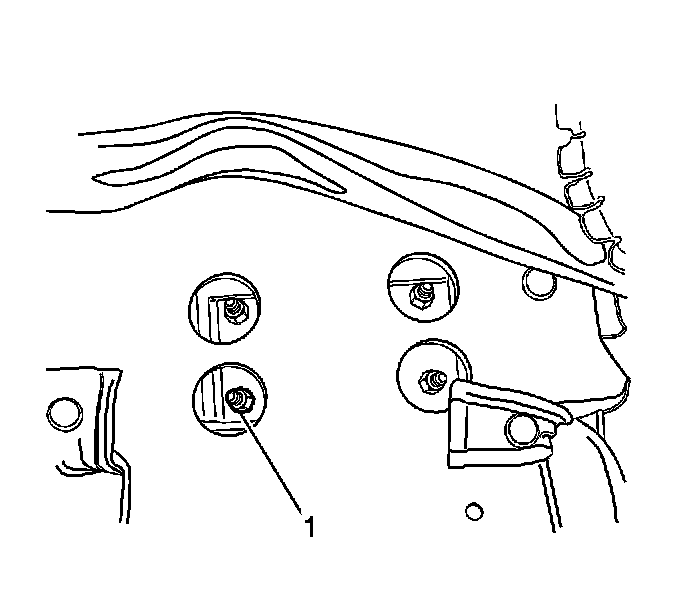

4. Remove the armrest retaining nuts (1) from the armrest.
5. Remove the armrest from the seat.

INSTALLATION PROCEDURE
1. Install the armrest into the seat back.




2. Install the armrest nuts (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the armrest nuts to 9 N.m (80 lb in).




3. Install the J channel retainer (1) from the right side of the seat back.
