Trim Plate Replacement - Console Upper

TRIM PLATE REPLACEMENT - CONSOLE UPPER

REMOVAL PROCEDURE
1. Remove the center floor console.

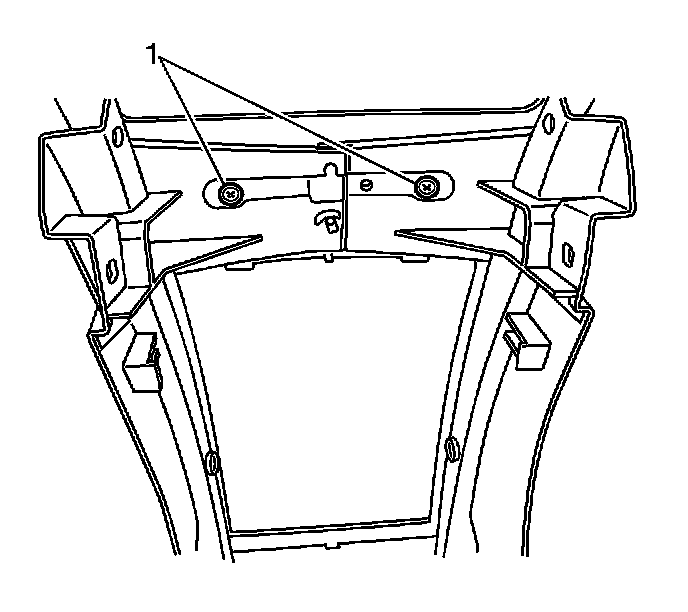

2. Remove the screws (1) under the front of the trim securing the upper trim the console base.




3. Pull up on the upper trim (1) in order to release the retainers securing the upper trim to the console base.

INSTALLATION PROCEDURE




1. Push down on the upper trim (1) in order to attach the retainers securing the upper trim to the console base.




2. Install the screws (1) under the front of the trim securing the upper trim the console base.
3. Install the center floor console.
