Trim Plate Replacement - Console Front

TRIM PLATE REPLACEMENT - CONSOLE FRONT

REMOVAL PROCEDURE

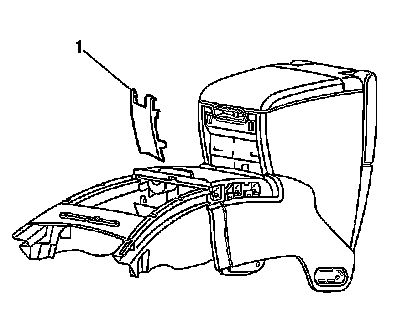

1. With a flat tool, pry on the top of the trim plate (1) in order to release the retainers.
2. Remove the trim plate.

INSTALLATION PROCEDURE




1. Locate the front trim plate (1) to the console mounting holes.
2. Push the trim plate (1) in order to secure the retainers.
