Cupholder Replacement - Front Floor Console

CUPHOLDER REPLACEMENT - FRONT FLOOR CONSOLE

REMOVAL PROCEDURE




1. Remove the center console.

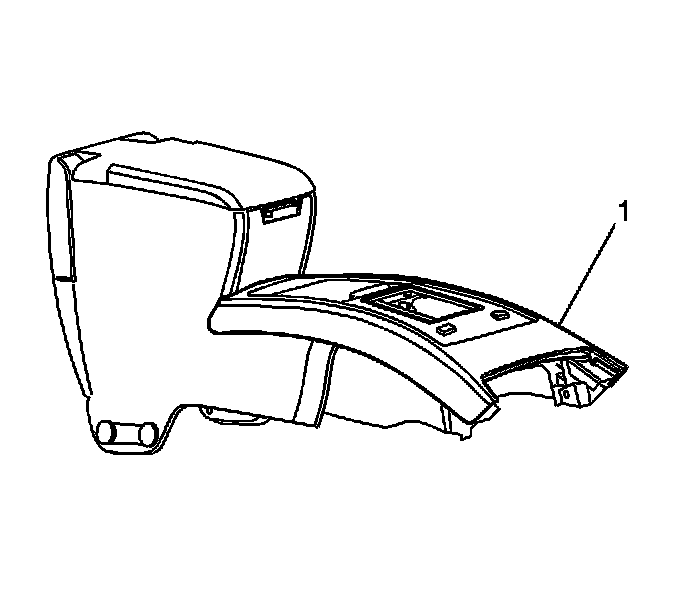

2. Remove the top trim (1).

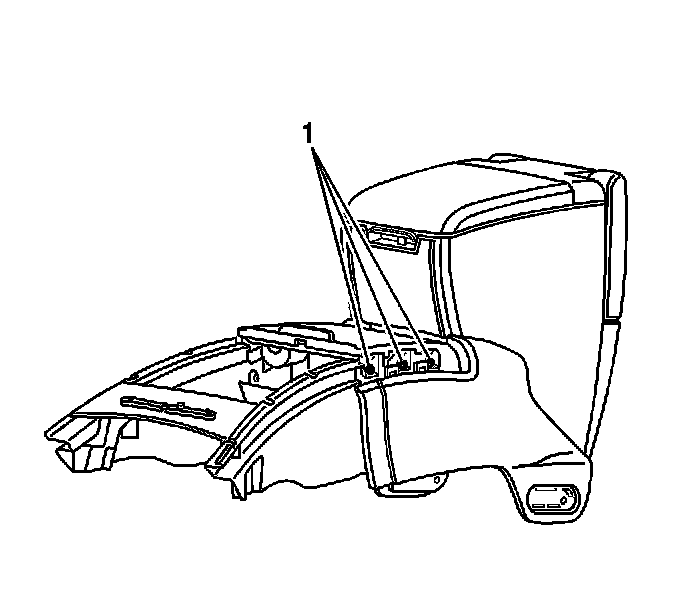

3. Remove the 6 retaining screws on the cup holder (1).
4. Remove the cup holder (1) from the console.

INSTALLATION PROCEDURE




1. Install the cup holder (1) onto the console.
2. Install the 6 retaining screws to the cup holder (1) securing it to the console.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 N.m (9 lb in).




3. Install the top trim (1).
4. Install the center console.
