Console Replacement - Front Floor

CONSOLE REPLACEMENT - FRONT FLOOR

REPAIR PROCEDURE




1. Remove the shifter trim bezel.
2. Disconnect the traction control electrical connector from the shifter trim bezel.

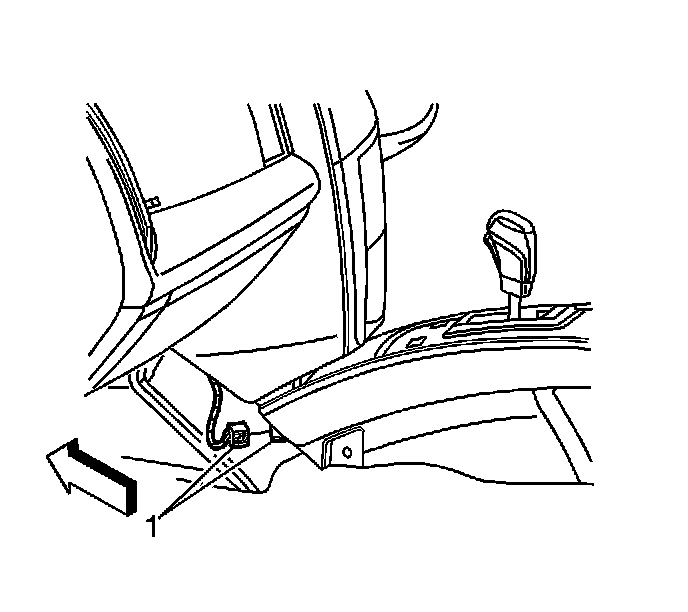

3. Disconnect the right and left console harness connectors (1).

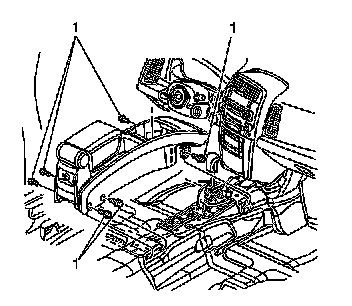

4. Remove the 6 screws (1) securing the console to the floor.

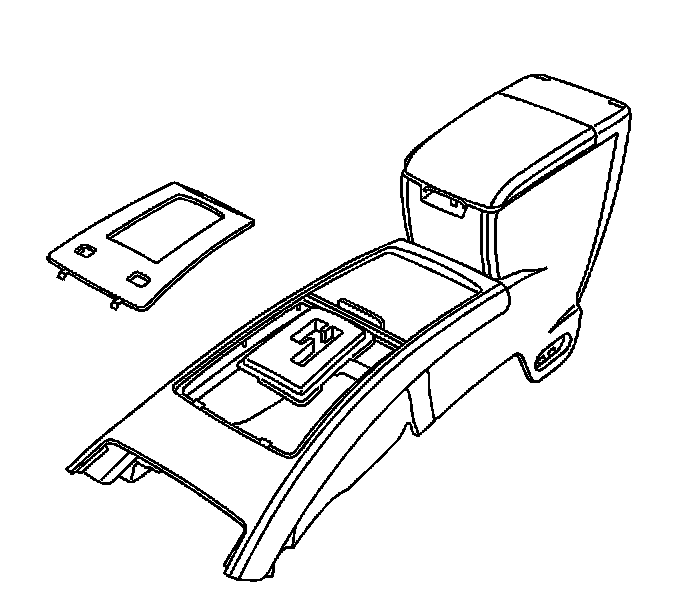

5. Remove the console from the vehicle.

INSTALLATION PROCEDURE




1. Position the console on the floor of the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws (1) securing the console to the floor.

Tighten the fasteners to 25 N.m (18 lb ft).




3. Connect the right and left console harness connectors (1).




4. Install the traction control electrical connector.
5. Install the shifter trim cover.
