Console Armrest Replacement - Front Floor (Without DVD)

CONSOLE ARMREST REPLACEMENT - FRONT FLOOR (W/O DVD)

REMOVAL PROCEDURE

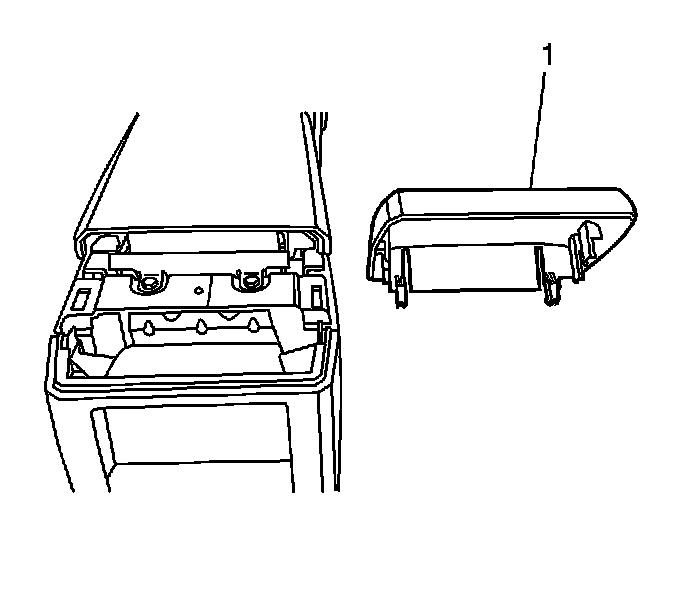

1. Pull up on the rear of the console filler trim (1) in order to release the retaining tabs.

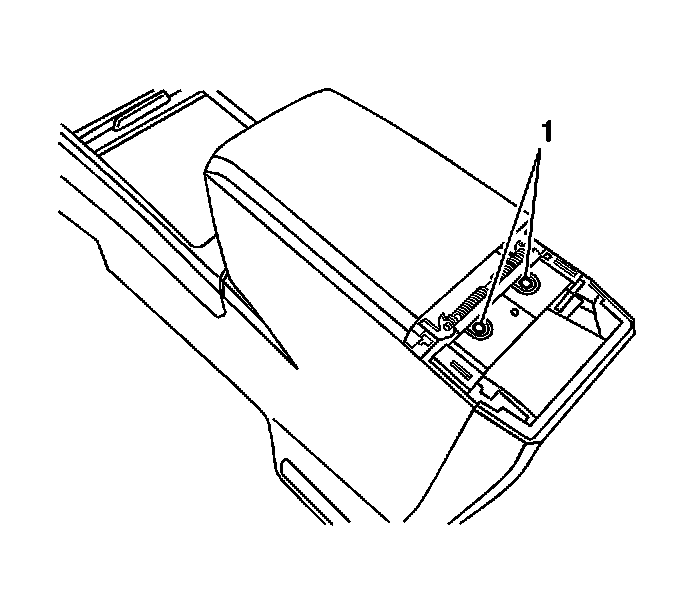

2. Remove the armrest retaining screws (1).
3. Remove the armrest.

INSTALLATION PROCEDURE




1. Locate the armrest onto the console.
2. Install the armrest retaining screws (1)

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the armrest retaining screws to 9 N.m (80 lb in).

3. Locate the armrest filler trim onto the console with the front retaining tabs.




4. Push down on the rear of the armrest filler trim (1) in order to secure the retaining tabs.
