Console Armrest Replacement - Front Floor (With DVD)

CONSOLE ARMREST REPLACEMENT - FRONT FLOOR (WITH DVD)

REMOVAL PROCEDURE
1. Open the DVD display screen.

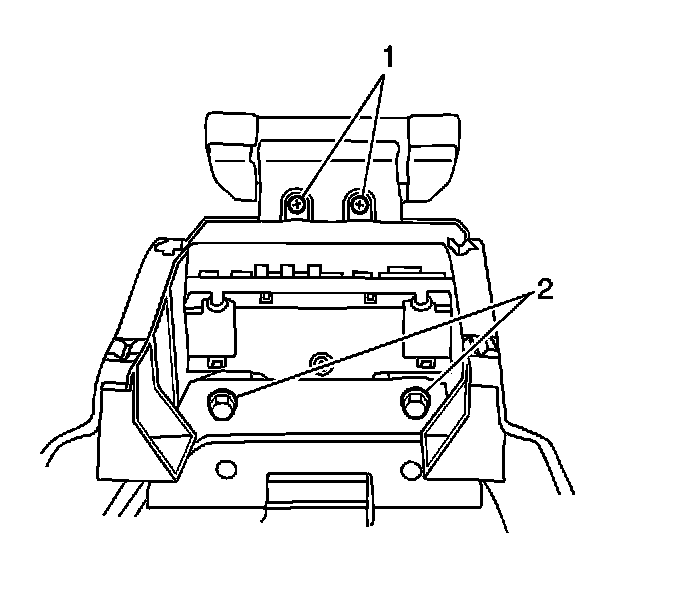

2. Remove the 2 screws (1) under the armrest filler trim.
3. Pull up on the armrest filler trim in order to release the retaining tabs.

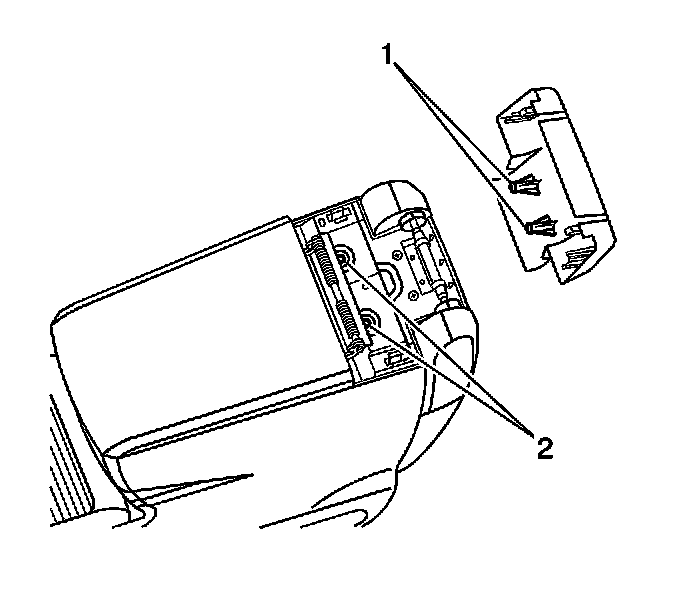

4. Remove the armrest retaining screws (2).
5. Remove the armrest.

INSTALLATION PROCEDURE
1. Locate the armrest to the console.




2. Install the armrest retaining screws (2)

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the armrest retaining screws to 9 N.m (80 lb in).

3. Install the armrest filler trim to the top on the console.




4. Install the armrest filler screws (1).

Tighten the screws to 9 N.m (80 lb in).
