Trunk / Liftgate Motor: Service and Repair

Liftgate Close Actuator Motor Replacement

Preliminary Procedure






Remove the bodyside trim panel.

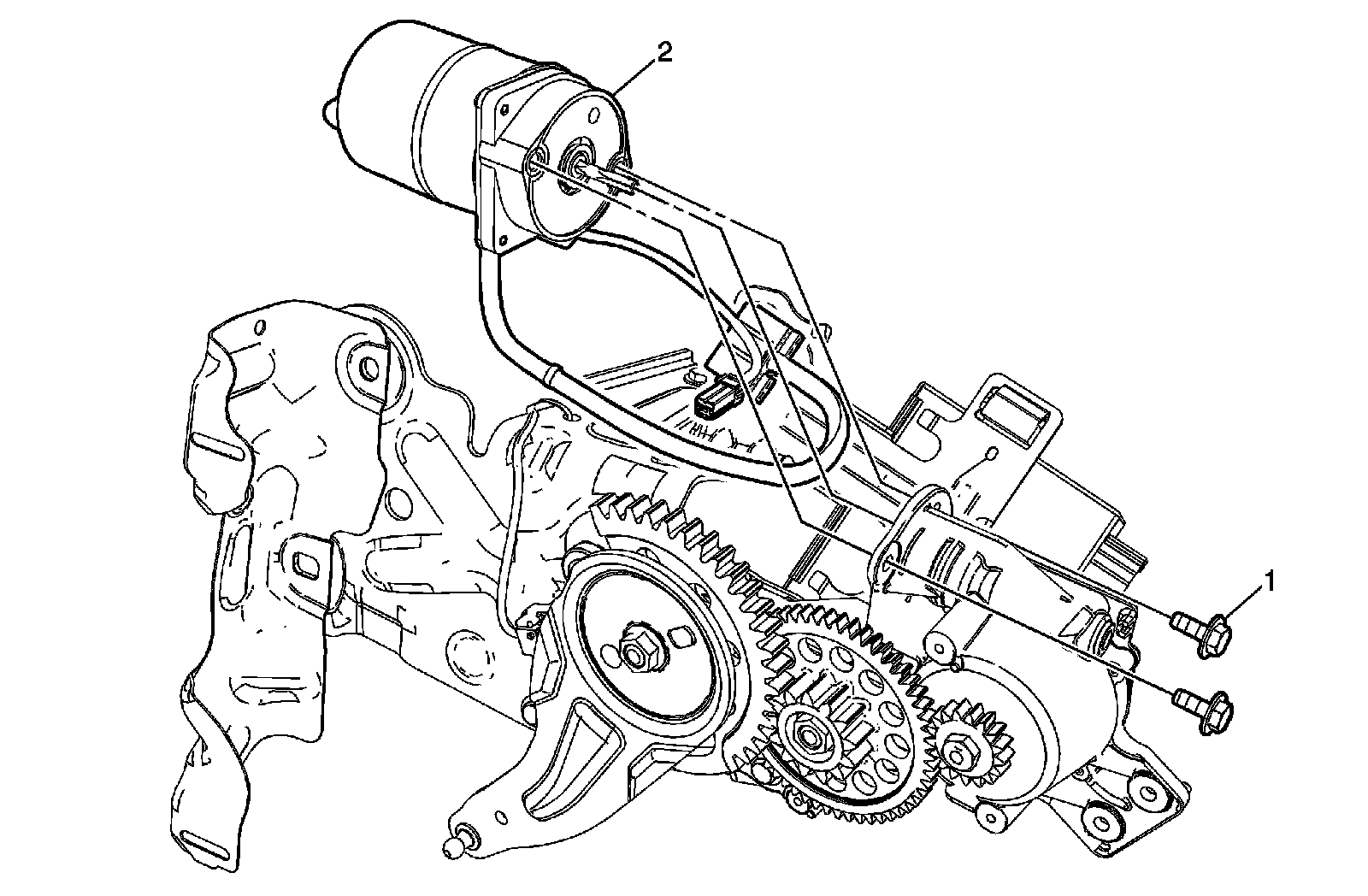

1. Power Liftgate Motor Bolt (Qty: 2)

Tighten
10 Nm (89 lb ft)

2. Power Liftgate Motor

Tip
Disconnect electrical connector
