Scan Tool Output Controls

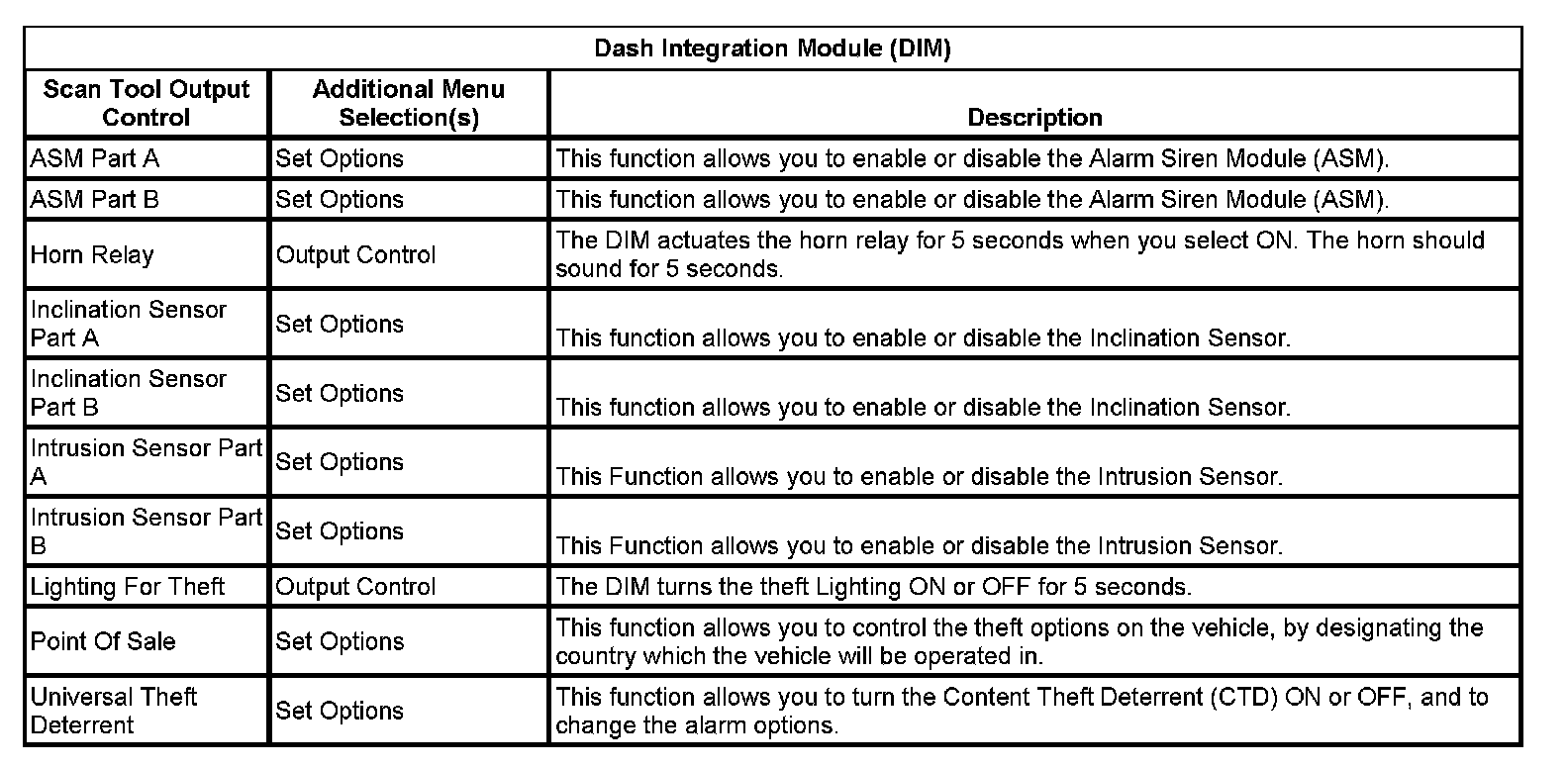

Dash Integration Module (DIM):

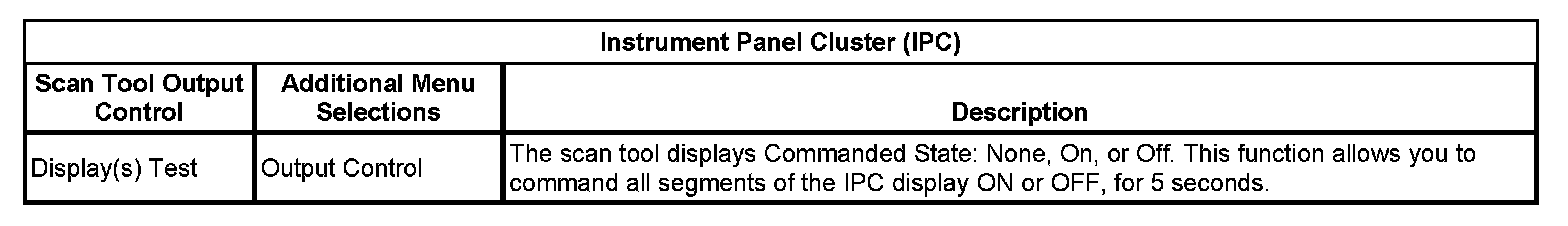

Instrument Panel Cluster (IPC):

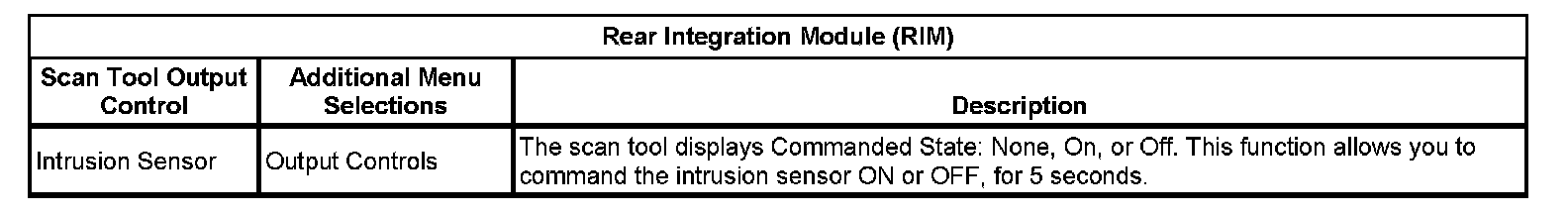

Rear Integration Module (RIM):
