Ambient Light Sensor

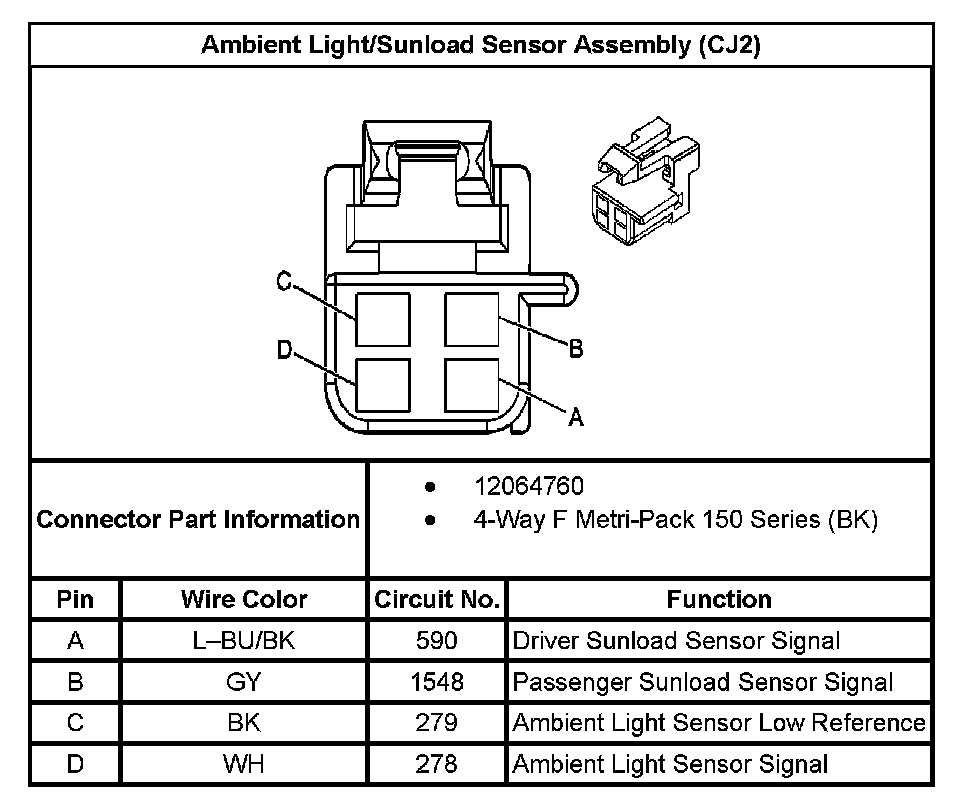

Ambient Light/Sunload Sensor Assembly (With RPO Code CJ2):

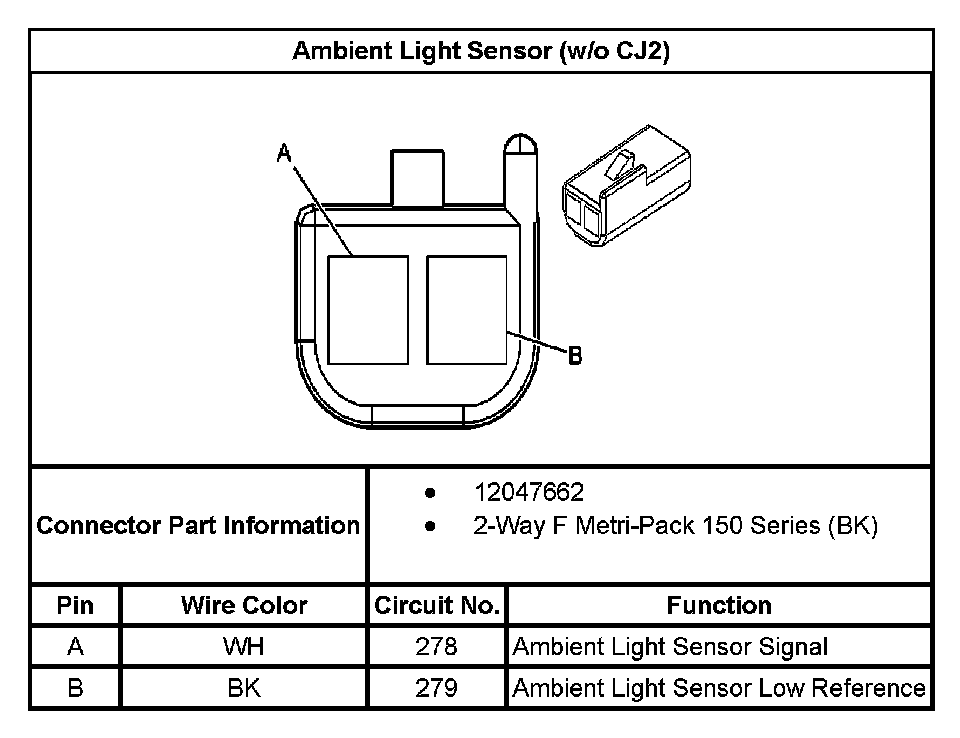

Ambient Light Sensor (without RPO Code CJ2):
