Trim Panel Insert Replacement - Front Door

TRIM PANEL INSERT REPLACEMENT - FRONT DOOR

REMOVAL PROCEDURE




1. Remove the front door trim panel.

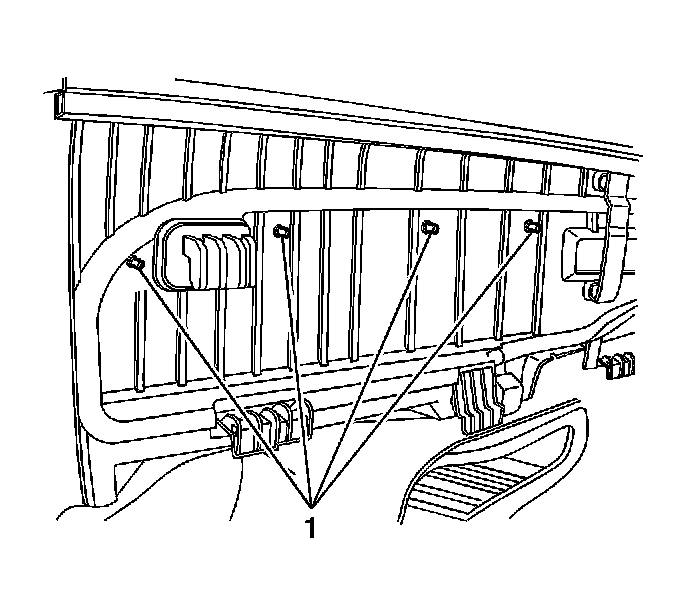

2. Remove the door trim panel insert retaining nuts (1).
3. Remove the door trim panel insert from the panel.

INSTALLATION PROCEDURE




1. Position the door trim panel insert into the door trim panel.
2. Install the door trim panel insert retaining nuts (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the door trim panel insert retaining nuts (1) until fully driven, seated, but not stripped.

3. Install the door trim panel.
