Object Alarm Module Replacement

OBJECT ALARM MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Lift the left rear seat cushion up to gain access to the electronic suspension control module and rear object alarm module container.
2. Remove the cover retainers, discard if damaged.
3. Partially remove the container assembly from underneath the seat.
4. Remove the cover (1) by pushing in on the tabs to release the cover.

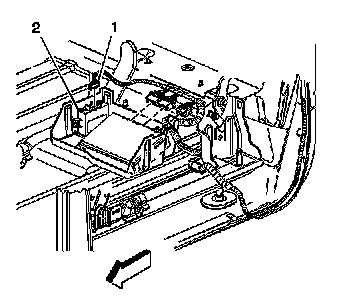

5. Disconnect the electrical connector (1) from the rear object alarm module (2).

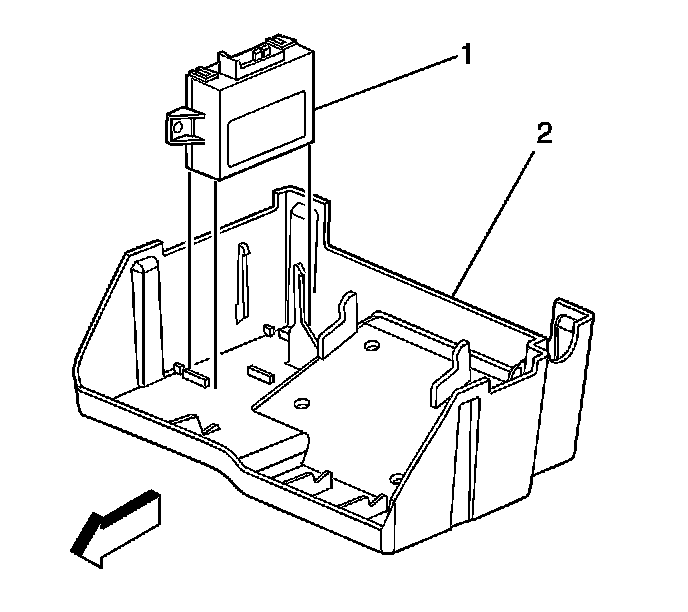

6. Release the tabs retaining the module to the container (2).
7. Remove the module (1) from the container (2).

INSTALLATION PROCEDURE




1. Install the module (1) to the container (2).




2. Connect the electrical connector (1) to the module (2).




3. Install the container cover (1) and lock in place.
4. Slid the container under the rear seat.
5. Install the container retainers.
6. Set the rear seat to its original position.
