Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Buick
>>
2013
>>
Verano L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

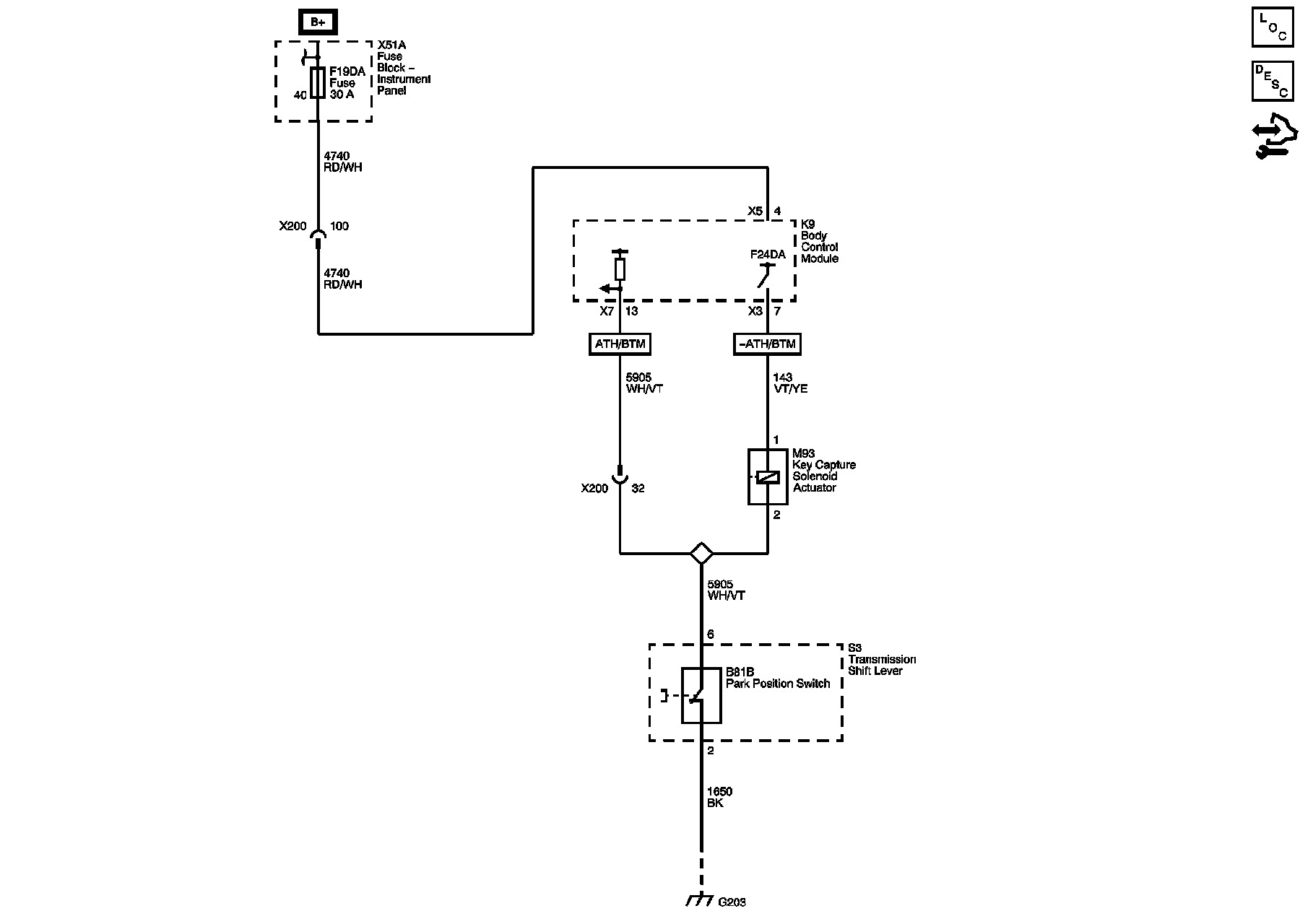

Ignition Lock Schematics
Ignition Lock Schematics
Ignition Lock
Schematics
Ignition Lock
Electronic Park Lock Description and Operation
