Buick
>>
2013
>>
Verano L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Schematics
>>
G110
G110

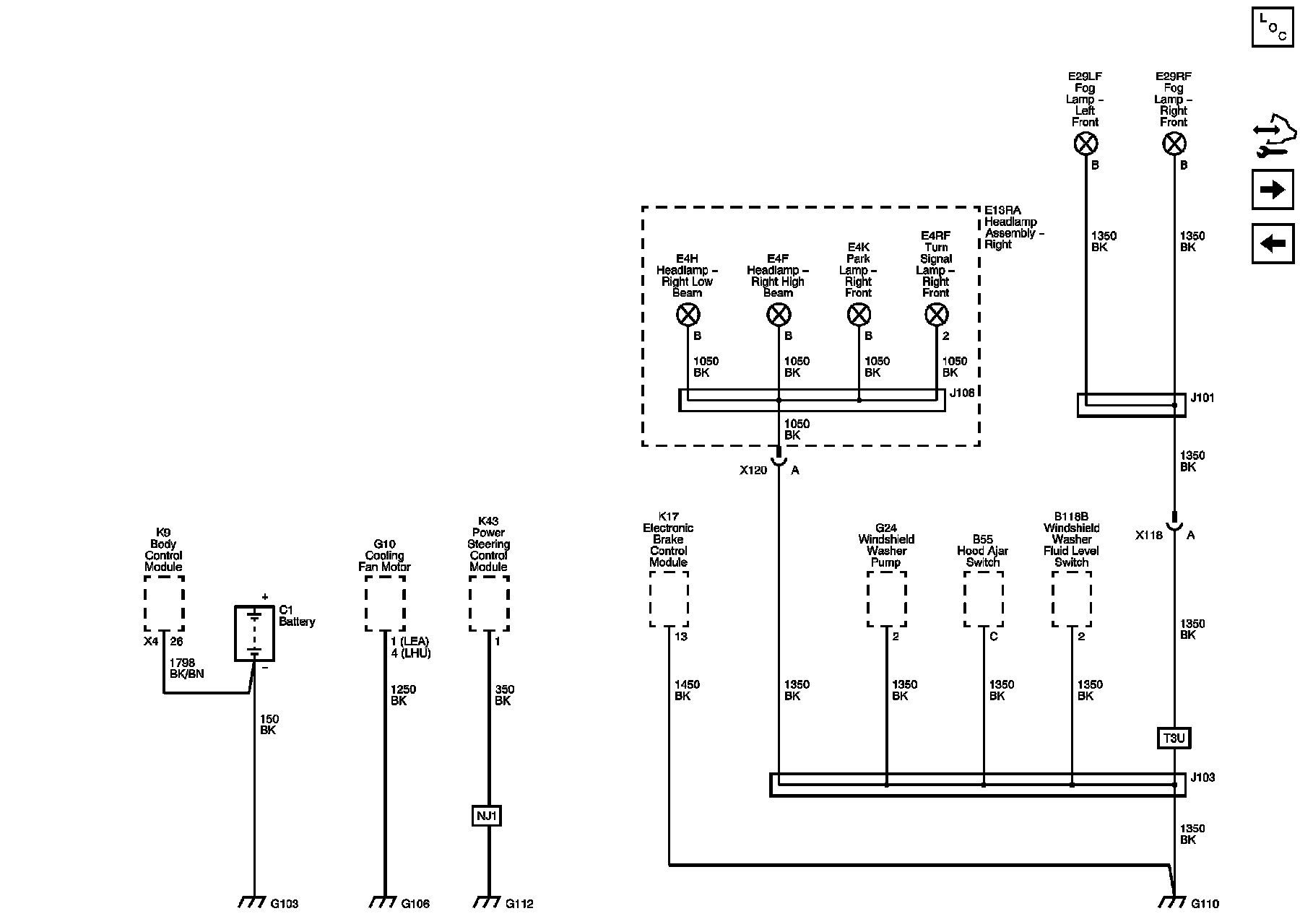

Ground Distribution Schematics
G103, G106, G110, and G112
