Camshaft Position Sensor - Exhaust
Camshaft Position Sensor - Exhaust

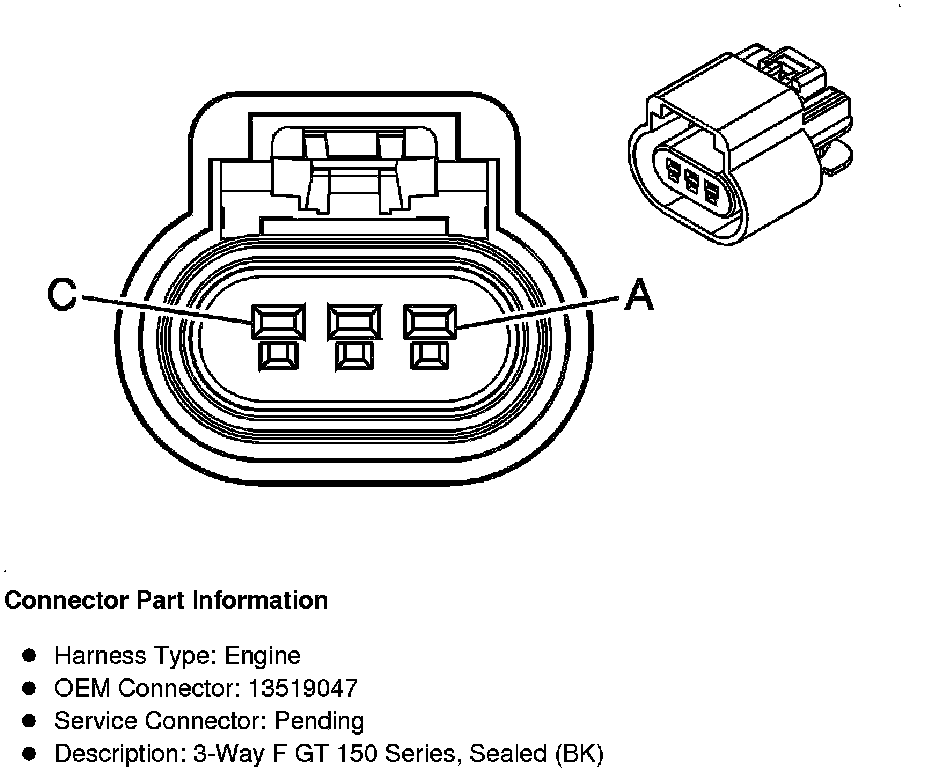

Component Connector End Views

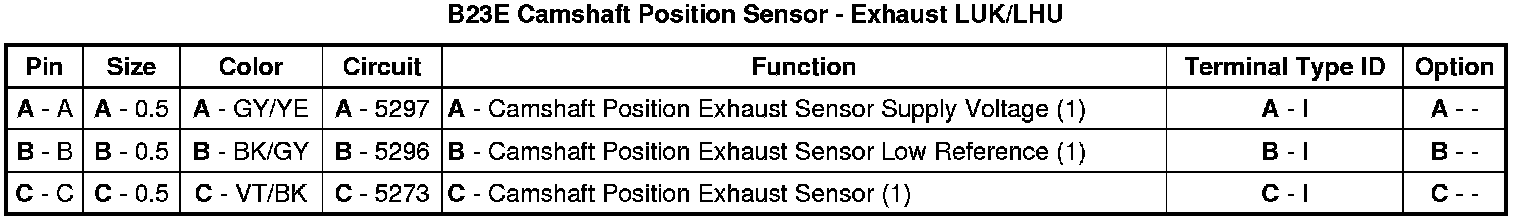

B23E
Camshaft Position Sensor
- Exhaust LUK/LHU
