Buick
>>
2013
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>
Outside Rearview Mirror Motor - Driver
Outside Rearview Mirror Motor - Driver
Component Connector End Views

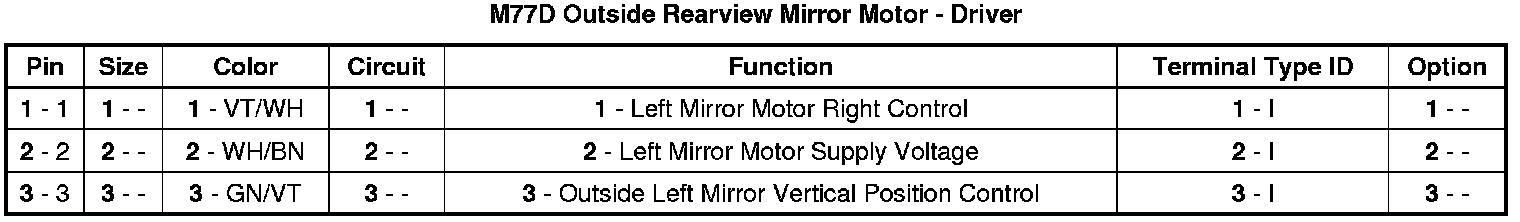

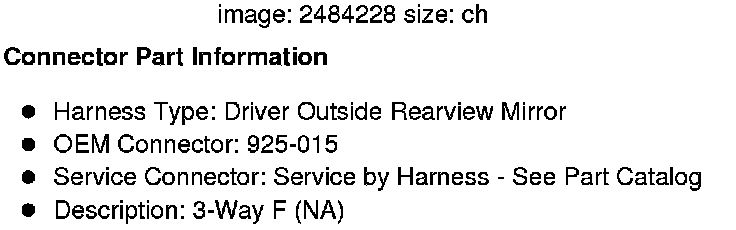

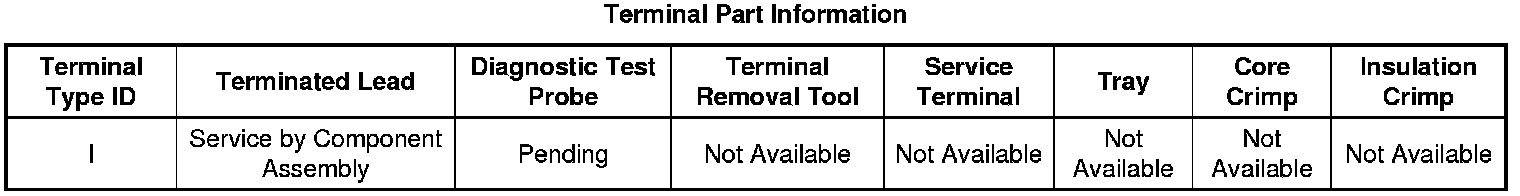

M77D Outside Rearview Mirror Motor - Driver
