Home
>>
Buick
>>
2013
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Horn
>>
System Diagram
System Diagram

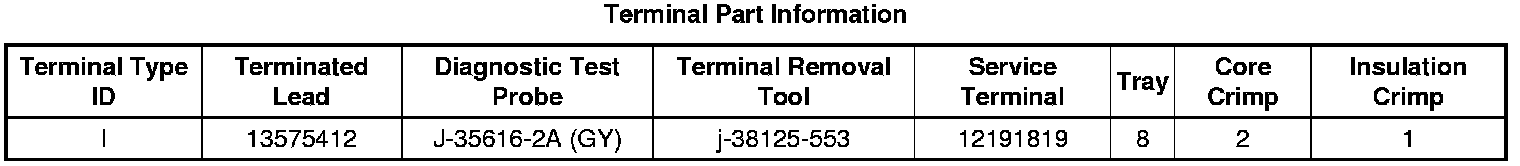

Component Connector End Views

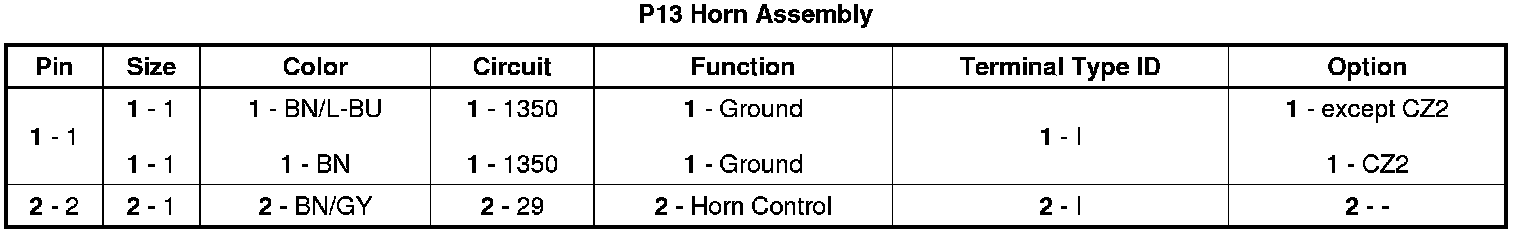

P13 Horn Assembly
