Home
>>
Buick
>>
2013
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Evaporator Temperature Sensor / Switch
Evaporator Temperature Sensor / Switch

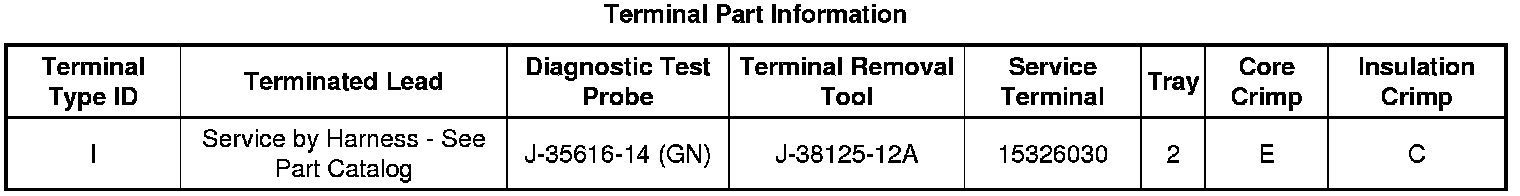

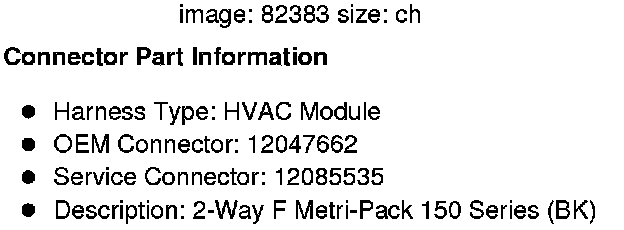

Component Connector End Views

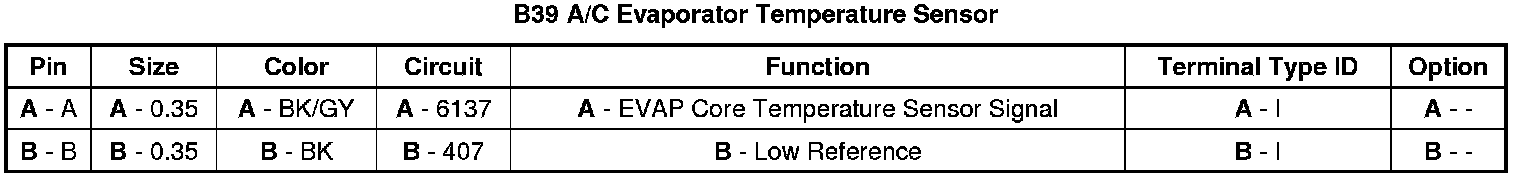

B39 A/C Evaporator Temperature Sensor
