Seat Horizontal Motor - Driver
Seat Horizontal Motor - Driver
Component Connector End Views

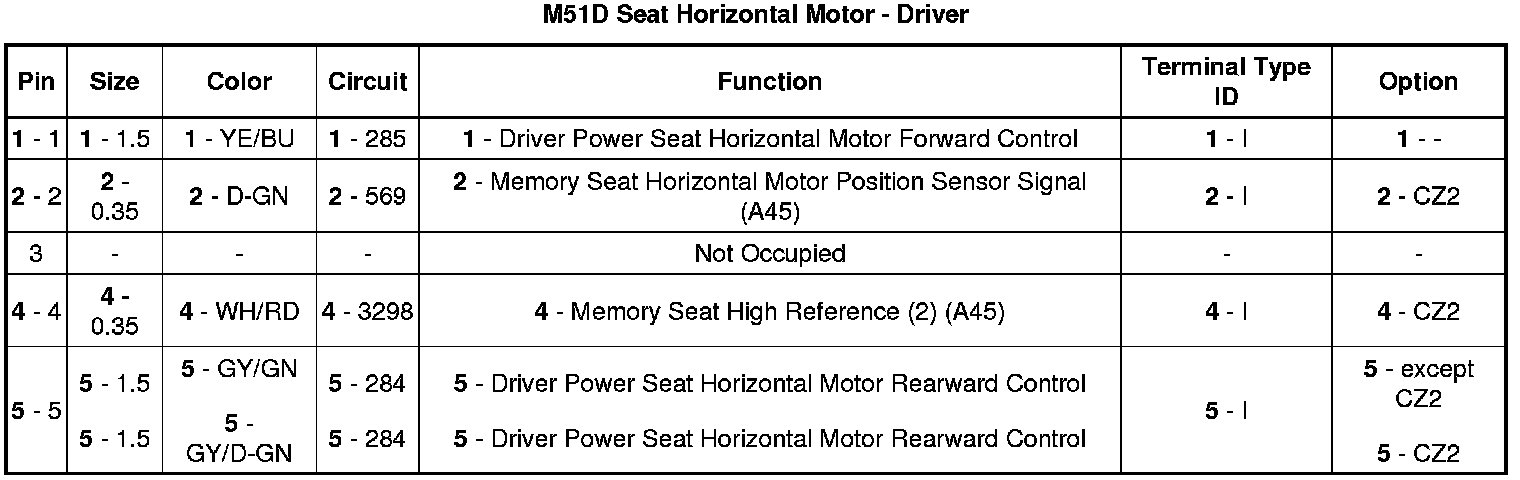

M51D Seat Horizontal Motor - Driver
