Home
>>
Buick
>>
2013
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Rear Compartment Courtesy Lamp
Rear Compartment Courtesy Lamp

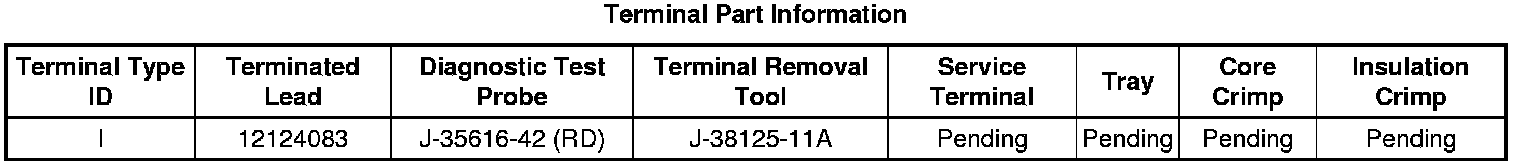

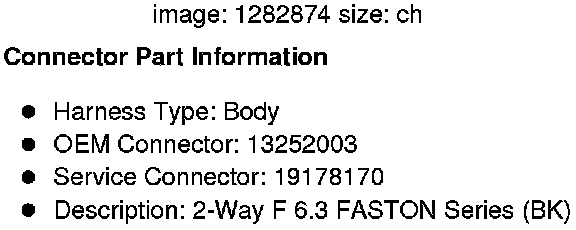

Component Connector End Views

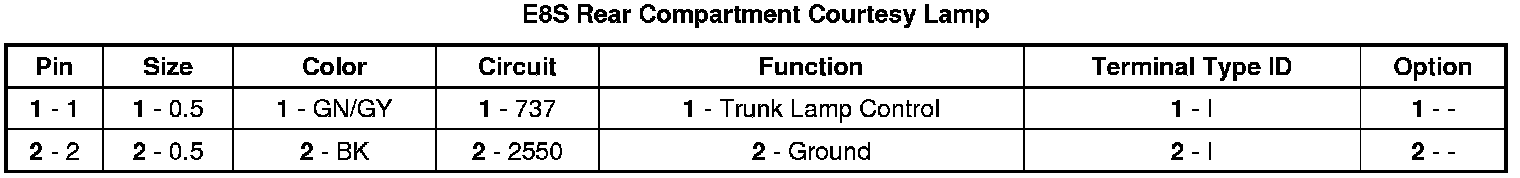

E8S Rear Compartment
Courtesy Lamp
